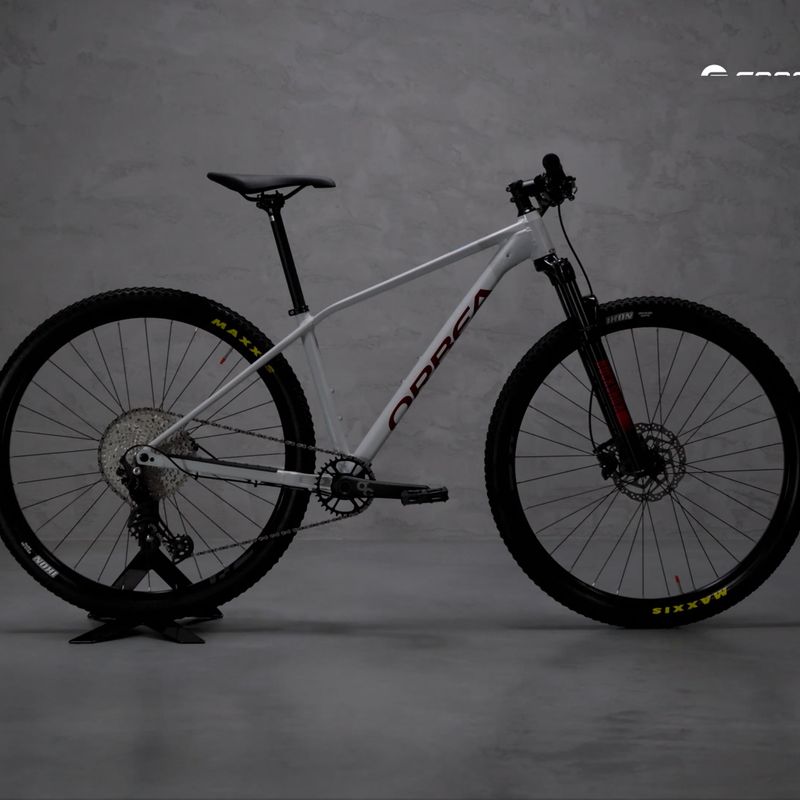

Frame
Frame Orbea Alma Hydro Alloy, Boost 12x148, BSA BB, Internal cable routing
Frame material Aluminium
Components
Steering wheel OC1 Flat 31.8mm 740mm
Handlebar support Alloy 31.8mm interface 7º
Depreciation Front
Rudders FSA 1-1/8 - 1-1/2" Integrated
Fork RockShox 30 Silver TK Crown adjust QR Solo Air 100
Saddle Selle Royal 2058 DRN
Bar Alloy 27.2 Offset 0
Drive
Derailleurs 1x11
Number of gears 11
Rear derailleur (model) Shimano Deore M5100 SGS Shadow Plus
Handles Shimano Deore M5100
Crank mechanism OC1 Alloy forged Boost 32t
Cassette / Freewheel Sun Race 11-51t 11-Speed
Chain KMC X11
Brakes
Brakes (model) Shimano MT201 Hydraulic Disc
Brake type Hydraulic discs
Wheels
Wheel size 29"
Wheels Orbea Black Rock 23c Disc
Tyres Maxxis Ikon 2.20" FB 60 TPI Dual
Additional information
Lighting No
Mudguards No
Luggage carrier No
Pedals included No
Weight of bike (estimated) 13,58 kg
Folding condition of the bike Bike adjusted and pre-assembled
Other data
Sport Bicycles
Brand Orbea
Leading colour White
Season Year-round
Model/product code ALMA H50
Purpose MTB
Gender Male, Woman
Country of origin of the brand Spain
Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.
Model colour 2000022548
| Size | S | M | L | XL |
| Height (cm) | 155-170 | 165-180 | 178-190 | 185-198 |
| A - Seat tube (mm) | 400 | 445 | 483 | 533 |
| B - Horizontal pipe (mm) | 559 | 593 | 618 | 647 |
| C - Steerer tube (mm) | 90 | 100 | 110 | 125 |
| D - Rear triangle (mm) | 430 | 430 | 430 | 430 |
| E - Support height (mm) | 309 | 309 | 309 | 309 |
| F - Support lowering (mm) | 61 | 61 | 61 | 61 |
| G - Wheelbase (mm) | 1083 | 1118 | 1144 | 1175 |
| H - Head angle | 68 | 68 | 68 | 68 |
| I - Seat tube angle (°) | 74,5 | 74,5 | 74,5 | 74,5 |
| J - Crossover (mm) | 793 | 729 | 749 | 819 |
| K - Reach (mm) | 395 | 426 | 448 | 474 |
| L - Stack (mm) | 593 | 602 | 612 | 625 |
| M - Fork (mm) | 500,8 | 500,8 | 500,8 | 500,8 |
Advantages
Front cushioning
The cushioning on the bike provides comfort when negotiating bumps in the road. This model features front wheel cushioning, which absorbs the force when hitting an obstacle and increases the level of safety.
Aluminium frame
The aluminium frame is characterised by its high resistance to scratches and damage. In addition, this material is characterised by its low weight, which makes carrying the bike no problem.
Hydraulic disc brakes
This mountain bike is equipped with hydraulic disc brakes, which have a very low failure rate so that use will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.
29" wheels
The use of 29 wheels has made it possible to provide more and better tyre contact with the ground, which makes it much easier to overcome bumps when riding over rough terrain. This size guarantees good stability when riding at higher speeds.
