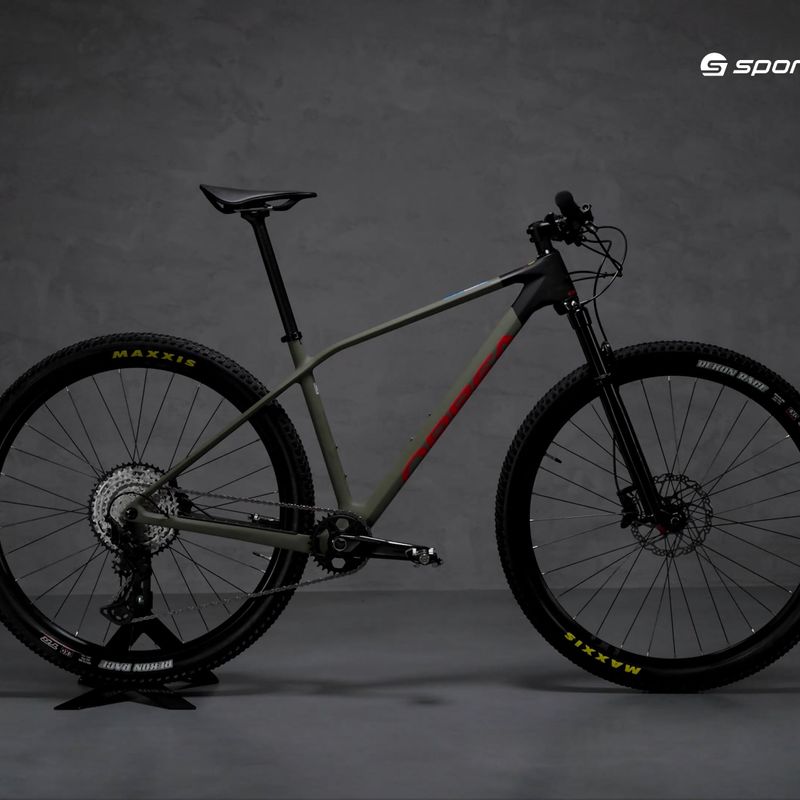

Orbea mountain bike Alma M30 green M22216L5

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Model/product code Alma M30 M22216L5

Leading colour Green

Brand Orbea

Country of origin of the brand Spain

Gender Male, Woman

Season Year-round

Crank mechanism Shimano MT611 32t

Wheel size 29"

Derailleurs 1x12

Cassette / Freewheel Shimano CS-M7100 10-51t 12-Speed

Sport Bicycles

Rear derailleur (model) Shimano XT M8100 SGS Shadow Plus

Handles Shimano SLX M7100 I-Spec EV

Depreciation Front

Brakes (model) Shimano M6100 Hydraulic Disc

Chain Shimano M6100

Handlebar support OC1 31.8mm interface -7º

Bar OC2 forge head 27.2 Offset 0

Tyres Recon Race 29x2,25 60 tpi

Frame material Carbon

Fork RockShox SID Select RL remote Q15X110 Boost DebonAir 100mm

Saddle Selle Royal Seta Sport

Steering wheel OC1 Flat 31.8mm 740mm

Brake type Hydraulic discs

Wheels Orbea OC1 25c Tubeless Ready

Stan złożenia roweru Bike adjusted and pre-assembled

Rudders FSA 1-1/8 - 1-1/2" Integrated

Orbea mountain bike Alma M30 green M22216L5 2

Orbea mountain bike Alma M30 green M22216L5

Sizes

Size	S	M	L	XL
Height (cm)	155-170	165-180	178-190	185-198
A - Seat tube (mm)	400	445	483	533
B - Horizontal pipe (mm)	559	593	618	647
C - Steerer tube (deg)	90	100	110	125
D - Rear triangle (mm)	430	430	430	430
E - Support height (mm)	309	309	309	309
F - Support lowering (mm)	61	61	61	61
G - Wheelbase (mm)	1083	1118	1144	1175
H - Head angle	68	68	68	68
I - Saddle angle	74,5	74,5	74,5	74,5
J - Crossover (mm)	693	729	749	819
K - Reach (mm)	395	426	448	474
L - Stack (mm)	593	602	612	625
M - Fork (mm)	500,8	500,8	500,8	500,8

Product description

Advantages

Carbon frame

Thanks to its flexibility, the carbon frame is characterised by its ability to absorb vibrations when riding over rough terrain. In addition, this material is characterised by its low weight, which makes carrying the bike no problem.

Hydraulic disc brakes

This mountain bike is equipped with hydraulic disc brakes, which have a very low failure rate so that use will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.

Drive 1x12

The 1x12 derailleurs used on this mountain bike allow effortless shifting and provide smooth gradation. The large gear range allows you to adjust the gearing to suit the current conditions on the trail.
