Basic data

Sport Bicycles
Brand Orbea
Leading colour Black
Season Year-round
Model/product code Oiz H30 M23017LC
Purpose MTB
Gender Male, Woman
Country of origin of the brand Spain
Code 2000047180

Frame

Frame Orbea Oiz Hydro High Polished, Alloy link, Boost, PF BB, UFO2, I-Line shock
Frame material Aluminium

Components

Steering wheel OC1 Flat 31.8mm 740mm
Handlebar material Aluminium
Handlebar support OC1 31.8mm interface -7º
Handlebar stem material Aluminium
Depreciation Full
Rudders Acros Alloy 1-1/8 - 1-1/2" Integrated
Fork Fox 32 Float Rhythm 120 Remote Push-Unlock QR15x110
Damper Fox i-line DPS Performance 120mm Remote Push-Unlock Evol custom tune190x45mm
Saddle Selle Royal Seta Sport
Bar Alloy 31.6x400mm Offset 0
Frame material Aluminium

Drive

Derailleurs 1x12
Number of gears 12
Rear derailleur (model) Shimano Deore M6100 SGS Shadow Plus
Handles Shimano Deore M6100
Crank mechanism Shimano MT511 32t
Cassette / Freewheel Shimano CS-M6100 10-51t 12-Speed
Chain Shimano M6100

Brakes

Brakes (model) Shimano MT201 Hydraulic Disc
Brake type Hydraulic discs

Wheels

Wheel size 29"
Wheels Orbea OC1 25c
Tyres Maxxis Ikon 2.20" FB 60 TPI Dual
Tubeless ready wheels Yes
Tubeless ready tyres Yes

Additional information

Lighting No
Mudguards No
Luggage carrier No

Warnings and producer's data

Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.
Producer Orbea S. Coop. | Polígono Industrial Goitondo, s/n, 48260 Mallabia, Bizkaia, Hiszpania | [email protected]

Other data

Service label Bike assembly service available

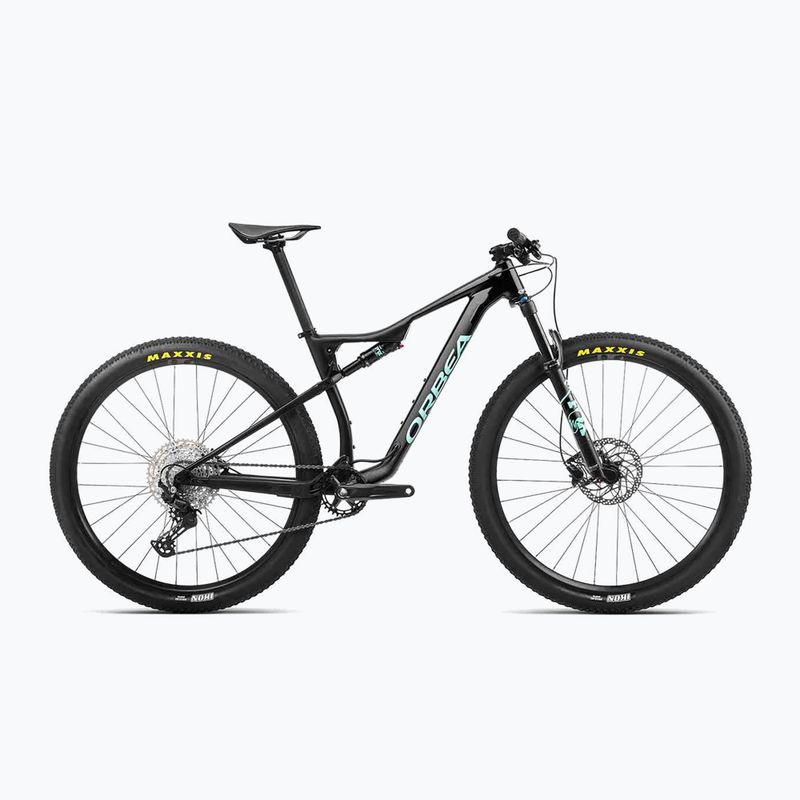

Orbea Oiz H30 mountain bike black-green M23017LC (M23017LC)

Advantages

Aluminium frame
When designing this bike, the focus was on selecting the right materials to ensure the highest quality. Therefore, the frame is made of aluminium, which combines durability and low weight.
Hydraulic disc brakes
This mountain bike model uses hydraulic disc brakes, which have a very low failure rate, so they will be trouble-free even during frequent use. The undoubted advantage is greater braking power and modulation.
Tubeless ready tyres
The use of TLR (Tubeless Ready) technology has made it possible to use lower pressures and makes the tyres resistant to punctures. What's more, the system rules out the problem of ‘Snake Bite’, i.e. puncturing the inner tube by pinching it against the rim.

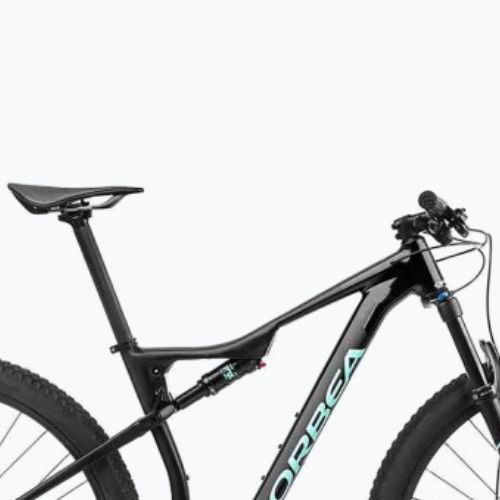

Full shock absorption
Allows easier traversing of off-road obstacles. Front and rear shock absorbers provide maximum wheel traction control and a balanced ride on the ground. The full suspension bike is very comfortable and soft to ride.
Drive 1x12
This bike uses 1x12 derailleurs, which provide smooth gradation and allow effortless gear changes. The large range of gear ratios allows you to adapt the gear to your current needs.

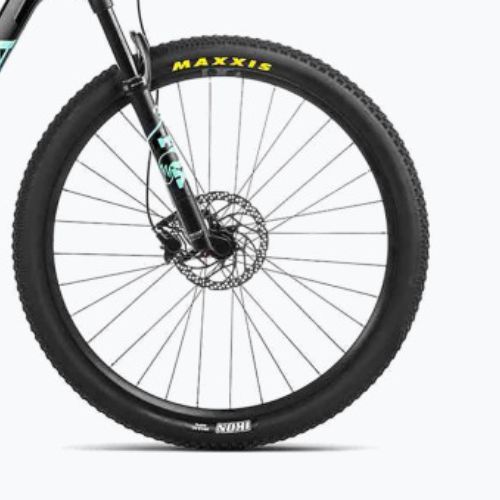

29" wheels
The use of 29 wheels has made it possible to provide more and better tyre contact with the ground, which makes it much easier to overcome bumps when riding over difficult terrain. This size guarantees good stability when riding at higher speeds.
Orbea Oiz H30 mountain bike black-green M23017LC
UVEX bike helmet Viva 3 black S4109840115
Size
52-57 cm
56-62 cm
Choose an Option...

Choose an Option

  • 52-57 cm €66.99 €59.99
  • 56-62 cm €66.99 €59.99
Add to Wish List
CamelBak Podium Chill bicycle bottle 710 ml black
Size
710 ml
Choose an Option...

Choose an Option

  • 710 ml €19.99
Add to Wish List
Elite bicycle kit Custom Race Plus basket + Elite Fly Tex Maillot Jaune 550 ml bottle black
Size
550 ml
Choose an Option...

Choose an Option

  • 550 ml €23.99 €21.99
Add to Wish List
Bike stand Orbea Onna/MX black
Size
27.5"-29"
Choose an Option...

Choose an Option

  • 27.5"-29" €42.99
Add to Wish List
  1. 100%

    bgНиколай

    Great bike!

    Top quality at a super price!

    Translated.Show original
Show per page

Review this product

Orbea Oiz H30 mountain bike black-green M23017LC

Orbea Oiz H30 mountain bike black-green M23017LC

Overall rating
Please enter the order number under which you purchased this product at Sportano.

Orbea Oiz H30 mountain bike black-green M23017LC

Bike assembly service available

Size M Sizes table
Choose an Option...

Choose an Option

Sizes table
    Size M L
    Height (cm) 165-180 178-190
    A - Seat tube (mm) 432 470
    B - Horizontal pipe (mm) 593 617
    C - Steerer tube (mm) 95 105
    D - Rear triangle (mm) 435 435
    E - Support height (mm) 327 327
    F - Support lowering (mm) 47 47
    G - Wheelbase (mm) 1123 1148
    H - Head angle 69 69
    I - Seat tube angle (°) 75 75
    J - Crossover (mm) 732 742
    K - Reach (mm) 435 456
    L - Stack (mm) 591 600
    M - Fork (mm) 504 504
