JOBOBIKE Sam is a reliable travel companion that provides not only comfort but also a stylish and eco-friendly alternative to urban transportation.

Basic data

Brand JOBOBIKE
Country of origin of the brand Poland
Sport Bicycles
Gender Male, Woman
Season Year-round
Leading colour Blue
Model/product code Sam SAM9049
Purpose City/urban
Code 2000102758

Frame

Frame Alloy 6061, aluminium
Frame material Aluminium

Components

Steering wheel Aluminium alloy, 600 mm
Depreciation Front
Fork Zoom, aluminium alloy
Saddle Velo
Bar Aluminium alloy, 27.2 x 350 mm

Drive

Derailleurs 1x7
Number of gears 7
Crank mechanism Aluminium, 48T
Cassette / Freewheel Shimano, 7-speed
Chain KMC C7NP

Brakes

Brakes (model) Tektro
Brake type Mechanical discs
Brake discs 160 mm front / 160 mm rear

Wheels

Wheel size 20"
Tyres CST/Kenda 20" x 2.125"

Engine

Engine location Hub
Engine power 250 W
Maximum torque 30 Nm

Battery

Battery type Lithium-ion
Battery capacity 468 Wh

Additional information

Pedals included Yes

Warnings and producer's data

Standards, certificates CE
Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.
Producer JOBO Europe Sp. z o.o. | ul. Gromadzka 5, 05-806 Sokołów, Polska | info@jobobike.pl

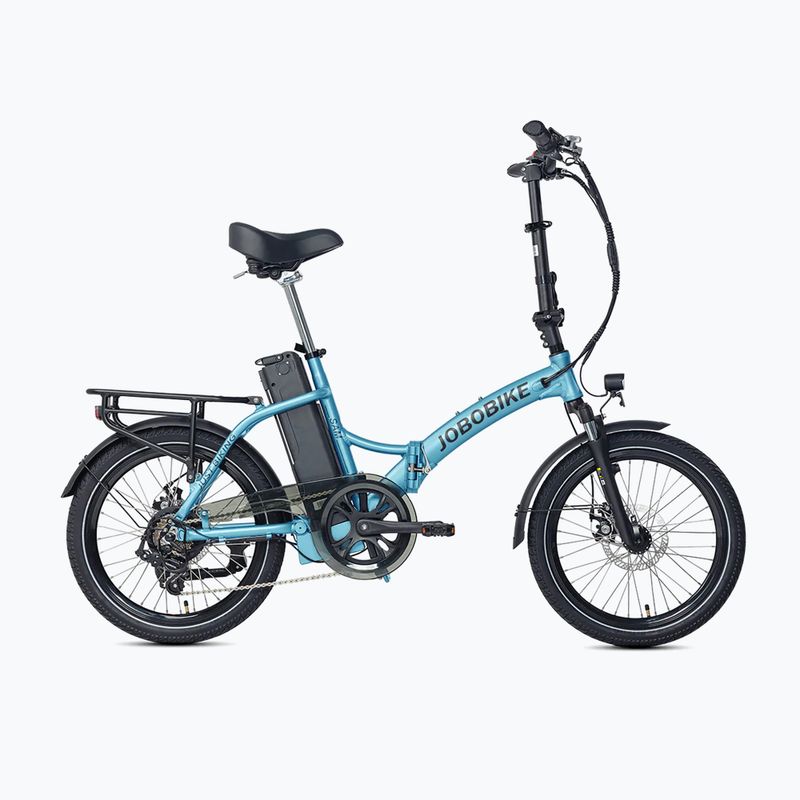

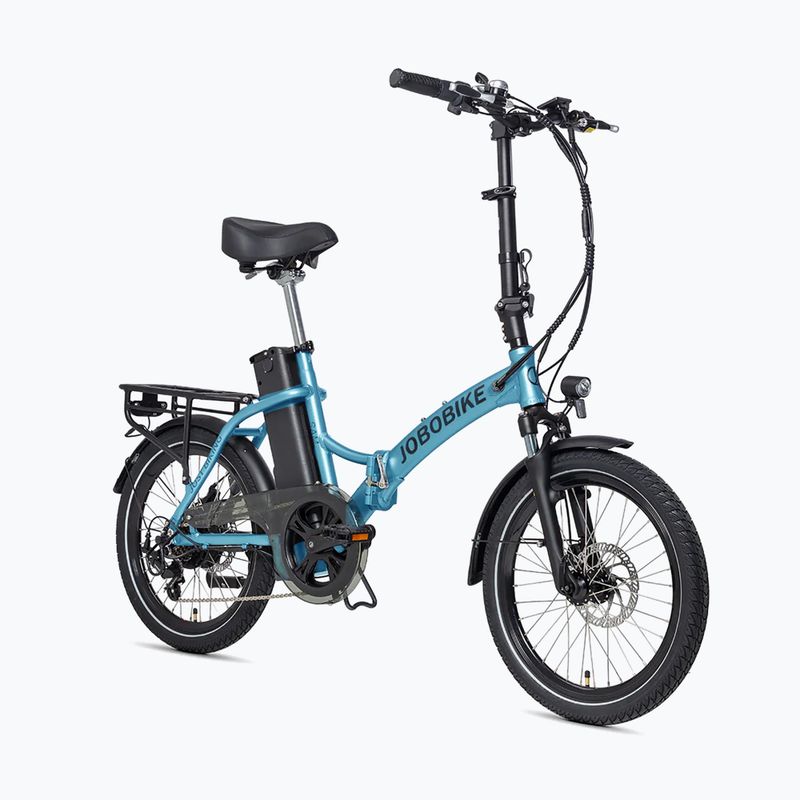

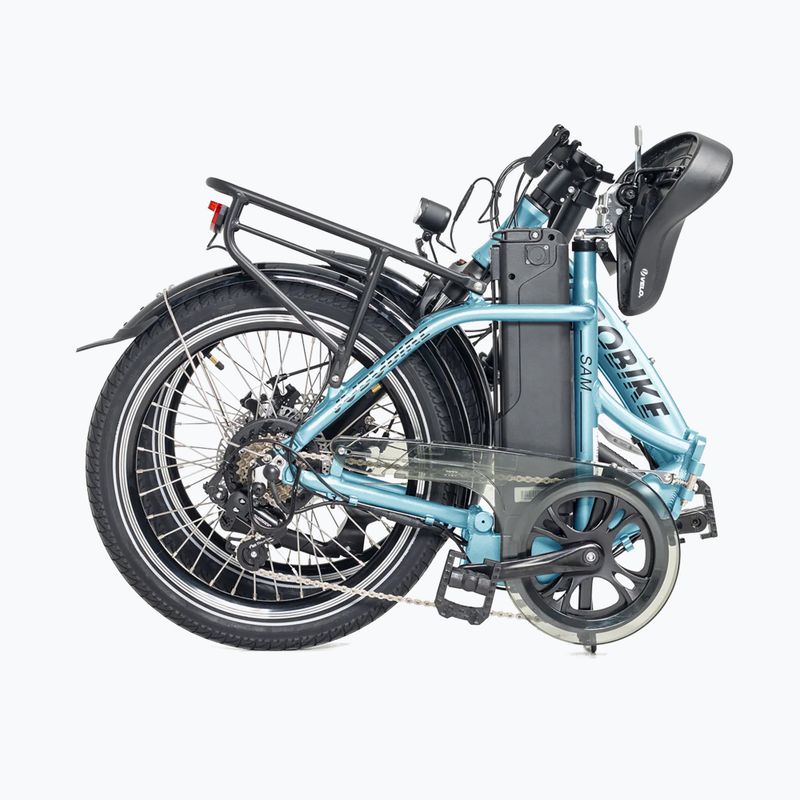

JOBObicycle Sam 36V 13Ah 468Wh blue electric bicycle (SAM9049)

JOBOBIKE Sam 36V 13Ah 468Wh Blue Electric Bike

Drive System and Gears

The JOBOBIKE Sam 36V 13Ah 468Wh blue electric bike uses a KMC C7NP chain, ensuring durability and reliability during rides. The gear system consists of a 7-speed Shimano cassette, allowing precise adjustment of the gear ratio to terrain conditions and user preferences. The aluminum crankset with 48 teeth provides efficient power transfer, which is especially important with electric assistance.

Suspension and Construction

The bike is equipped with front suspension, increasing comfort on uneven surfaces. The Zoom fork made of aluminum guarantees durability while maintaining a low weight of the structure. The 600 mm handlebar, also made from aluminum alloy, provides stable handling and a comfortable riding position.

Power System and Wheels

This model is powered by a 36V 13Ah lithium-ion battery, providing long operating time and range on a single charge. The maximum torque of 30 Nm assists pedaling, which is particularly useful during climbs. The bike is equipped with 20-inch wheels, facilitating maneuverability and ensuring agility, especially in urban conditions.

Additional Components

The JOBOBIKE Sam electric bike is equipped with a Velo saddle, which ensures comfort even on longer rides. The set also includes pedals, allowing immediate use right after purchase.

Summary

The JOBOBIKE Sam 36V 13Ah 468Wh blue electric bike is a solid choice for those seeking a reliable and efficient electric bike. Thanks to its construction and components used, this model performs excellently both in urban environments and on more demanding routes. The JOBOBIKE brand guarantees quality and modern solutions, making this bike an attractive choice for demanding users.

Feedback

There are no reviews yet, be the first!

Review this product

JOBObicycle Sam 36V 13Ah 468Wh blue electric bicycle

JOBObicycle Sam 36V 13Ah 468Wh blue electric bicycle

Overall rating
Please enter the order number under which you purchased this product at Sportano.

JOBObicycle Sam 36V 13Ah 468Wh blue electric bicycle

No opinion

Bike assembly service available

Size OS Sizes table
Choose an Option...

Choose an Option

Sizes table

    Below you will find information that will help you choose the right size when buying a JOBOBIKE brand electric bike.

    Size OS
    Height (cm) 150-165
    Max load (kg) 120
