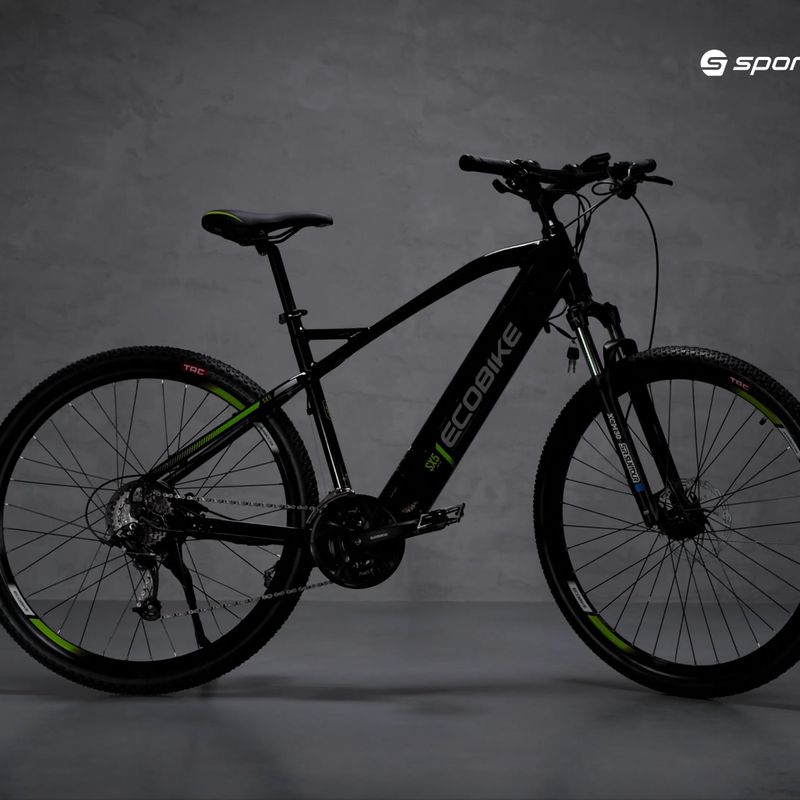

The electric bike Ecobike SX5 LG 17.5Ah is a great model for mountain riding in any conditions.

Basic data

Brand EcoBike
Country of origin of the brand Poland
Sport Bicycles
Gender Male, Woman
Season Year-round
Leading colour Black
Model/product code SX5 17.5Ah 1010403
Purpose MTB
Code 2000042735

Frame

Frame 20" hydroformed aluminium
Frame material Aluminium

Components

Steering wheel Zoom MTB-AL-312BT (22,2 mm x 31,8 mm x 720 mm)
Handlebar support Promax MA-47 (31,8 mm x 90 mm)
Grips VELO VLG-776-12D3+VLP-171
Depreciation Front
Fork SunTour XCM HLO DS 29
Saddle Velo VL-3363 NP1
Bar Promax MA-47 (31,8 mm x 90 mm)

Drive

Derailleurs 3x9
Number of gears 27
Front derailleur (model) Microshift Marvo
Rear derailleur (model) Microshift Marvo
Handles Microshift Marvo Xpress Shifters 3x9
Crank mechanism Shimano AFCM371C422CL 170 mm / 44x32x22T
Cassette / Freewheel SUNRACE MFE90 9CU / 13-32T / 9 SPEED
Chain KMC X9 / 11x128 / 112 mm

Brakes

Brakes (model) ALHONGA HJ-HT472
Brake type Hydraulic discs

Wheels

Wheel size 29"
Wheels Three-chambered rim
Tyres TRC Dryjack 29 "x2.1
Hubs KT KT-K68F - front hub
Tubeless ready wheels No

Engine

Engine model Bafang
Engine location Hub
Engine power 250 W
Maximum engine power 560 W
Maximum torque 45 Nm
Maximum speed 35 km/h ( assistance limited to 25 km/h in the settings)

Battery

Battery type Lithium-ion
Battery capacity 630 Wh
Battery location In the frame
Maximum range 140 km
Charger 220-240V/42V / 2A / D type

Additional information

Lighting No
Mudguards No
Luggage carrier No
Weight of bike (estimated) 26 kg

Warnings and producer's data

Standards, certificates CE
Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.
Producer Ecobike Sp. z o.o. | ul. Wschodnia 12, 55-330 Źródła (koło Wrocławia), Polska | biuro@ecobike.pl

EcoBike SX5 LG electric bike 17.5Ah black 1010403 (1010403)

The electric bike Ecobike SX5 LG 17.5Ah due to its design will be most suitable for mountain bikers who prefer active recreation or enjoy intense riding. The powerful motor of the mountain bikes Ecobike helps with riding even on steep climbs.

The Bafang motor with torque up to 45 Nm provides a pleasant feeling of assistance while riding. The battery with a range of up to 140 km provides enough energy even for long routes. The suspension fork will not let you down on mountain trails or difficult descents. Lovelec Naos reaches a maximum speed of up to 35 km/h.

The frame of the bike EcoBike SX5/LG 17.5 Ah is made of aluminum, which makes it lightweight and durable at the same time. The wiring routed inside the frame is an additional advantage that not only increases the bike's aesthetics but also reduces the risk of damage to cables and wires when riding in rough terrain. Complementing this model are the Microshift derailleurs and shifters. These are some of the best solutions on the market in this class of bikes. They provide fast and smooth gear changes, which translates into greater comfort while riding.

The model with a 20" frame size is suitable for people with a height of 185 - 190 cm.

EcoBike SX5 LG electric bike 17.5Ah black 1010403
Feedback

There are no reviews yet, be the first!

Review this product

EcoBike SX5 LG electric bike 17.5Ah black 1010403

EcoBike SX5 LG electric bike 17.5Ah black 1010403

Overall rating
Please enter the order number under which you purchased this product at Sportano.

EcoBike SX5 LG electric bike 17.5Ah black 1010403

No opinion

Bike assembly service available

Size 20" Sizes table
Choose an Option...

Choose an Option

Sizes table

    Size 20"
    Height (cm) 178-195
    A - Rura pozioma (mm) 610
    B - Rura sterowa (mm) 160
    C - Rura podsiodłowa (mm) 508
    D - Wheel base (mm) 1124
    E - Kąt siodełka (°)
    73
    F - Kąt główki (°) 70
