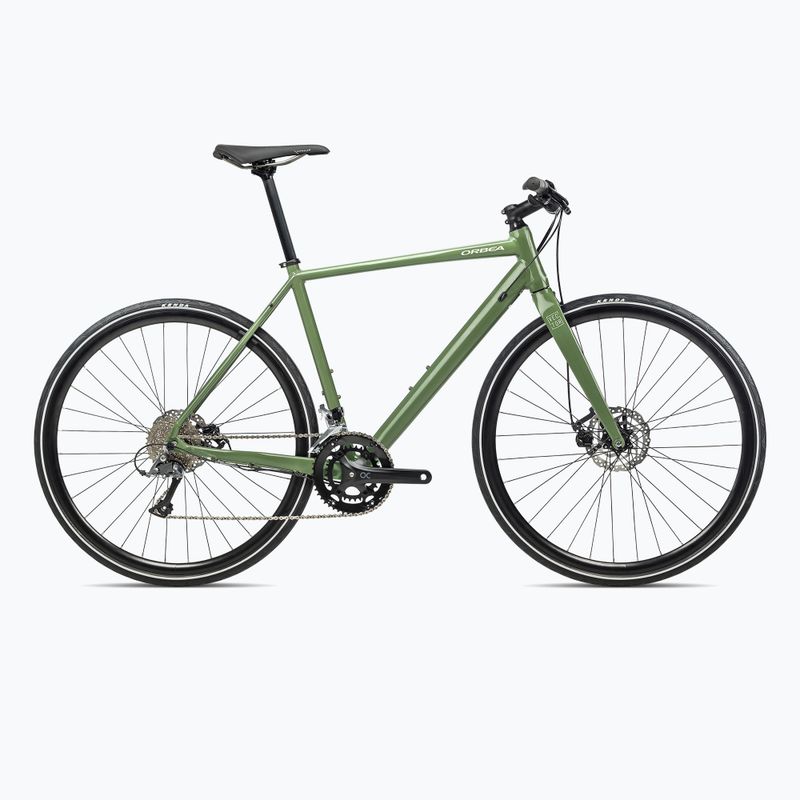

Orbea Vector 30 green fitness bike M40553RK

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Model/product code Vector 30 M40553RK

Leading colour Green

Brand Orbea

Country of origin of the brand Spain

Gender Male, Woman

Season Year-round

Handlebar stem material Aluminium

Crank mechanism Orbea Stop 32x48t 8S

Lighting No

Sport Bicycles

Frame Orbea Urban Speed, Aluminium 6000, Orbea Tube Shaping, Flat Mount Disc Brake, 135x9 QR

Wheel size 28"

Frame material Aluminium

Cassette / Freewheel Shimano HG50 11-34t 8-Speed

Derailleurs 2x8

Rear derailleur (model) Shimano Claris RD-R2000-GS

Handles Shimano Claris SL-R2000

Mudguards No

Brake type Mechanical discs

Handlebar material Aluminium

Tubeless ready tyres No

Fork material Aluminium

Handlebar basket No

Brakes (model) Shimano TX805 Mechanical Disc

Depreciation No

Chain KMC X8

Luggage carrier No

Handlebar support Alloy 31.8mm interface 7º

Bar Alloy 27.2 Offset 0

Weight of bike (estimated) 12,33 kg

Tyres Kenda K1098 700x32

Saddle Selle Royal Asphalt GR

Steering wheel Alloy 31.8mm Riser 640mm

Number of gears 16

Stan złożenia roweru Bike adjusted and pre-assembled

Front derailleur (model) Shimano Claris FD-R2000-F

Wheels Orbea Airline Corsa Disc 700X19c

Frame material Aluminium

Rudders VP-Z104PD 1-1/8"" Semi-Cartridge

Orbea Vector 30 green fitness bike M40553RK 2

Sizes

Size	XS	S	M	L	XL
Height (cm)	150-160	160-170	170-180	180-190	190-200
A - Seat tube (mm)	430	480	525	555	580
B - Horizontal pipe (mm)	521	546	559	580	601
C - Steerer tube (deg)	109	127	150	170	200
D - Rear triangle (mm)	435	435	435	435	435
E - Support height (mm)	281	281	283	283	285
F - Support lowering (mm)	70	70	68	68	66
G - Wheelbase (mm)	1021	1037	1052	1063	1075
H - Head angle	71	71	71	71,5	72
I - Saddle angle	75	74	74	73,5	73
J - Crossover (mm)	738	768	800	824	852
K - Reach (mm)	378	388	395	405	410
L - Stack (mm)	535	552	571	592	625
M - Fork (mm)	400	400	400	400	400

Product description

Advantages

Aluminium frame

The design of this bike has been created to ensure maximum comfort. The frame of this model is made of extremely strong aluminium, which stands out for its very low weight.

28" wheels

The 28-inch wheels are characterised by prolonged wear and allow faster speeds, which are far easier to maintain. Compared to smaller sizes, these wheels provide better stability at higher speeds.

Mechanical disc brakes

They are simple to maintain and their components are readily available and inexpensive. They operate in an uncomplicated manner, using the mechanical capabilities of the steel cable. The intensity of braking is directly proportional to the force exerted by the hands on the brake lever.
