Name: Orbea Oiz M-Pro TR mountain bike blue
Brand: ORBEA
SKU: 2000031674
Price: 5299 EUR
Availability: OutOfStock
Rating: 5 (1 reviews)

Orbea Oiz M-Pro TR mountain bike blue 10

Orbea Oiz M-Pro TR mountain bike blue 11

Orbea Oiz M-Pro TR mountain bike blue 12

Orbea Oiz M-Pro TR mountain bike blue 13

Orbea Oiz M-Pro TR mountain bike blue 14

Orbea Oiz M-Pro TR mountain bike blue 15

Orbea Oiz M-Pro TR mountain bike blue 16

Play video

Orbea Oiz M-Pro TR mountain bike blue 17

Play video

Show more (+13)

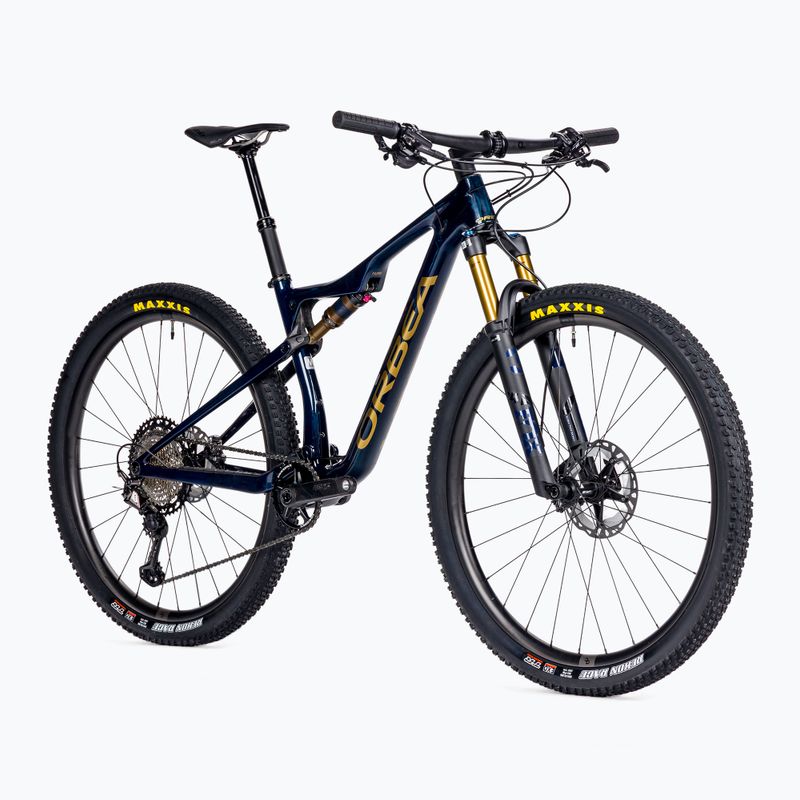

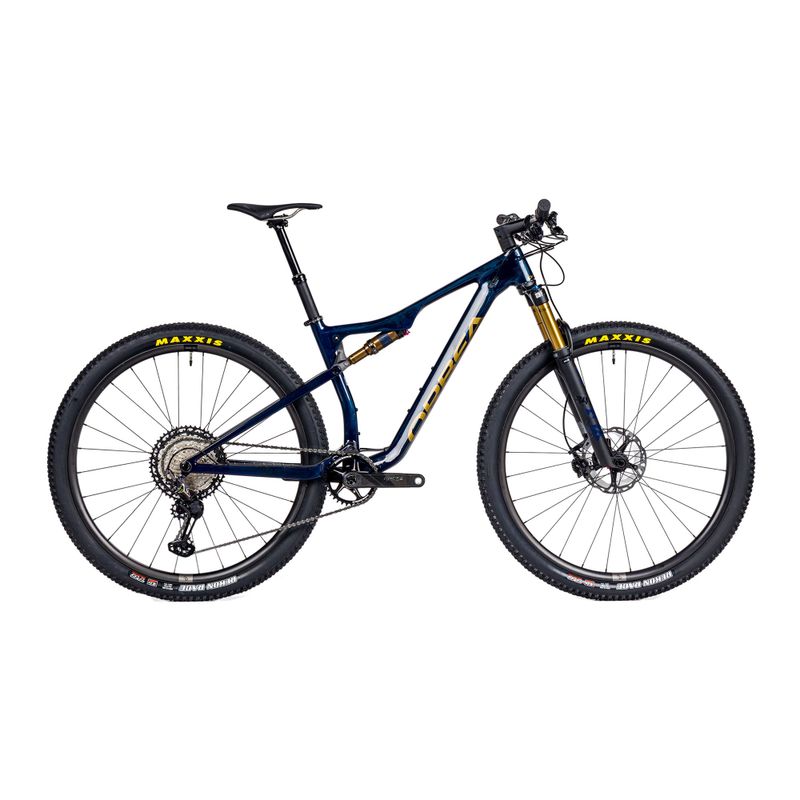

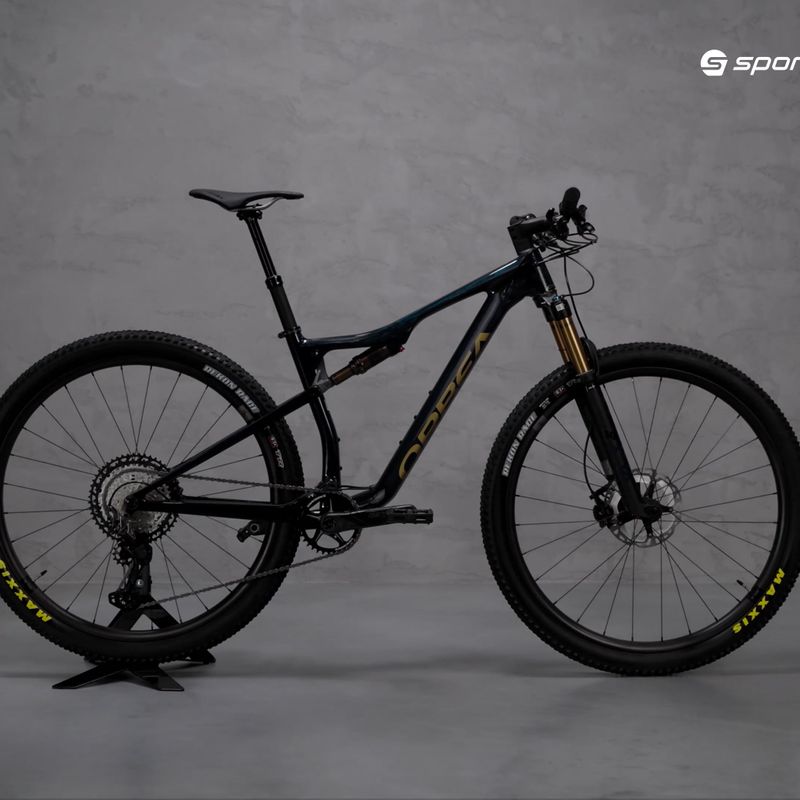

The mountain bike Orbea Oiz M-Pro TR has been equipped with the patented I-Line shock absorber by the Orbea brand.

Parameters

Basic data

Brand Orbea

Country of origin of the brand Spain

Sport Bicycles

Gender Male, Woman

Season Year-round

Leading colour Blue

Model/product code Oiz M-Pro TR

Purpose MTB

Code 2000031674

Frame

Frame Orbea Oiz Carbon OMX, Fiberlink, Boost, PF BB, UFO2, I-line shock

Frame material Carbon fibre

Components

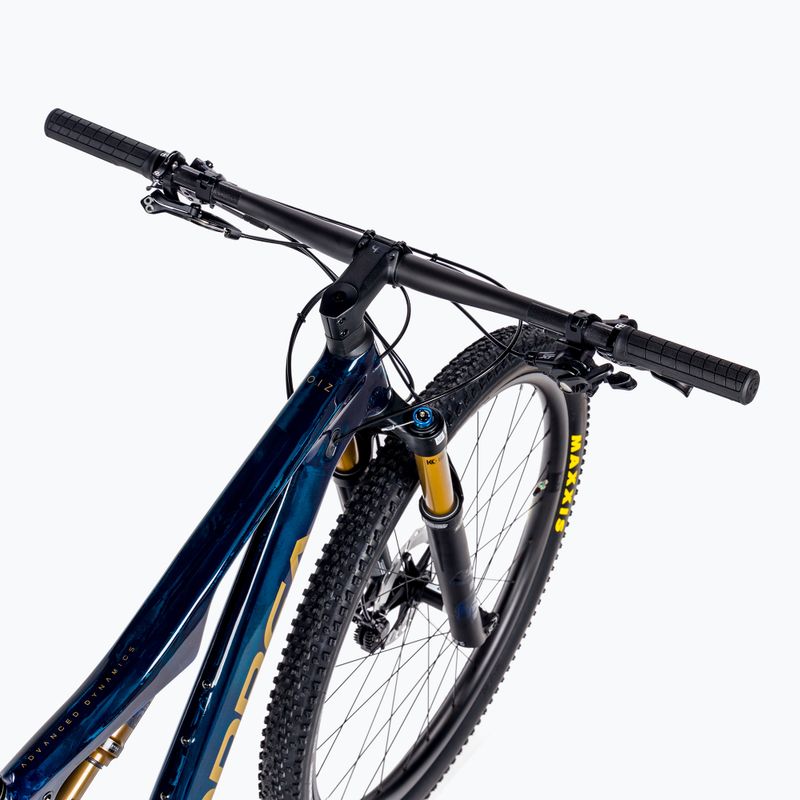

Steering wheel OC MP10 Mountain Performance Carbon, Width 760, Sweep 9

Handlebar width 760 mm

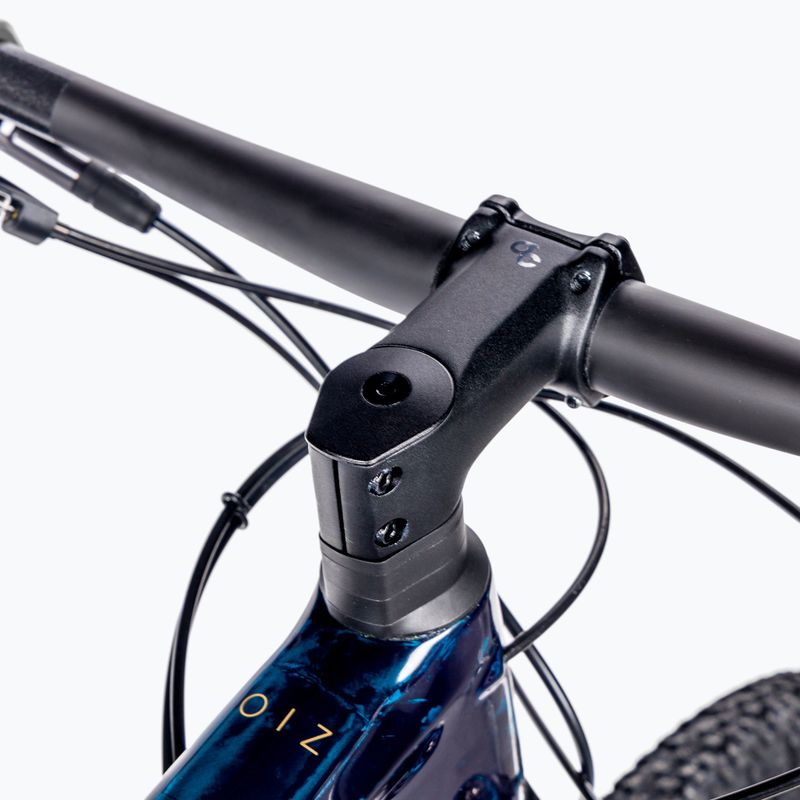

Handlebar support OC MP20 Mountain Performance, -8º

Depreciation Full

Rudders Acros Alloy 1-1/8 - 1-1/2" Integrated

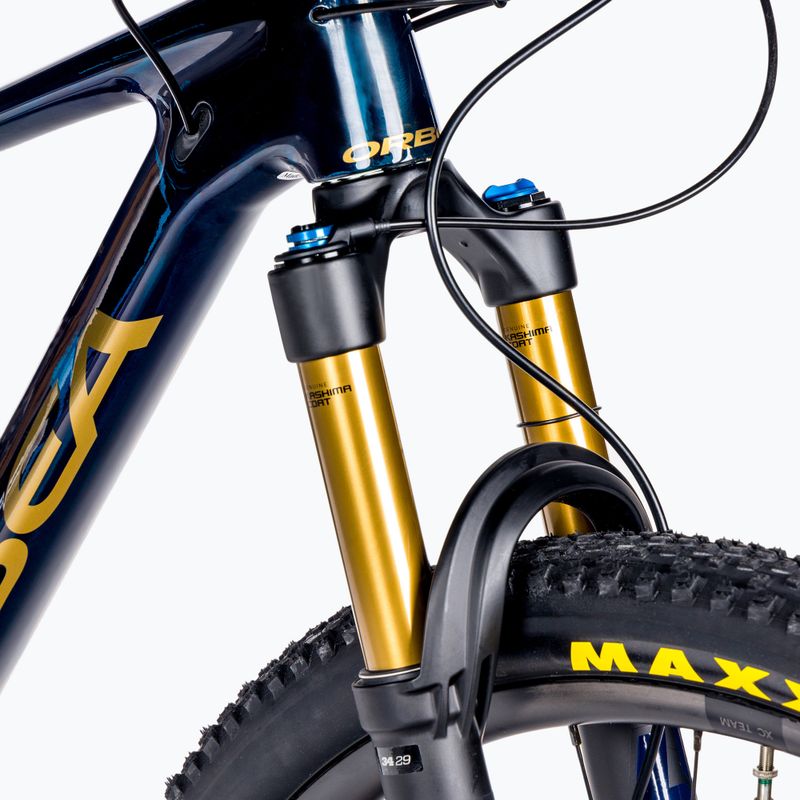

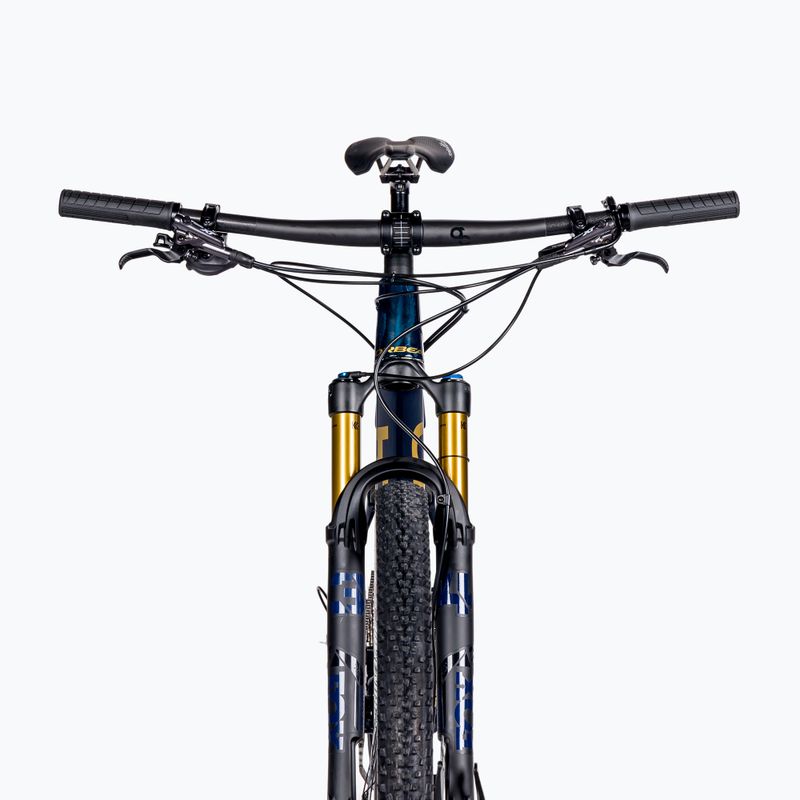

Fork Fox 34 Float SC Factory 120 FIT4 Remote-Adj Push-Unlock QR15x110

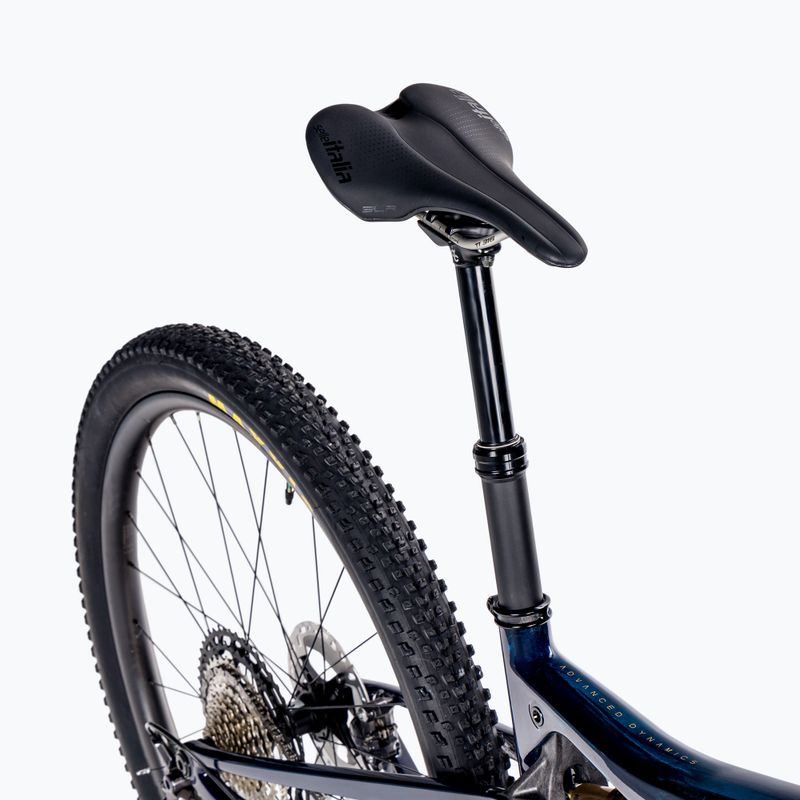

Saddle Selle Italia SLR Boost Fill Titanium Rail 316 Ø7 mm

Bar OC MC20 Mountain Control Dropper, 31,6mm, 125mm travel

Drive

Derailleurs 1x12

Number of gears 12

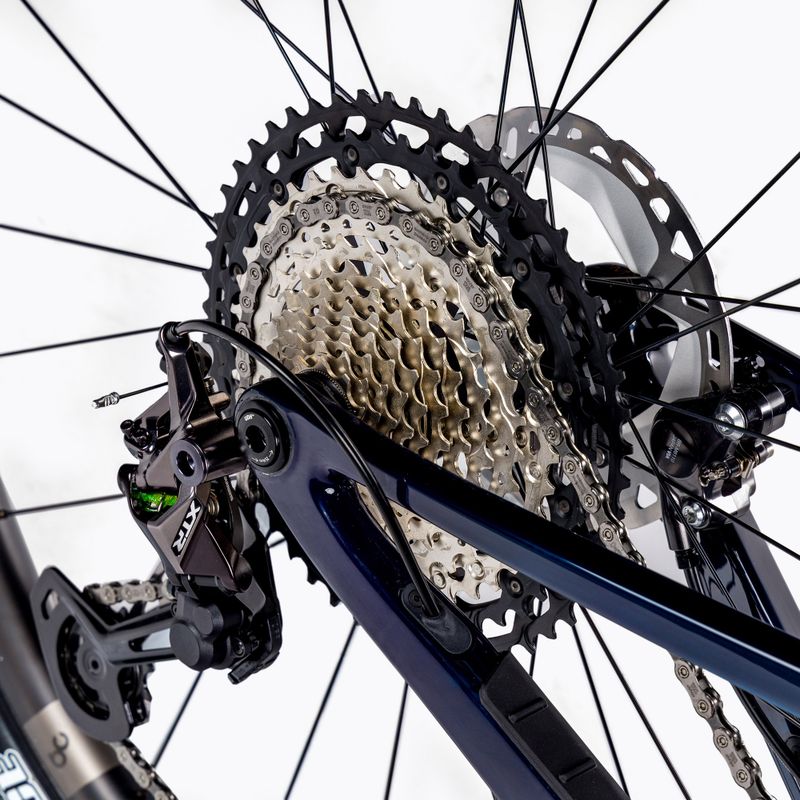

Rear derailleur (model) Shimano XTR M9100 SGS Shadow Plus

Handles Shimano XT M8100 I-Spec EV

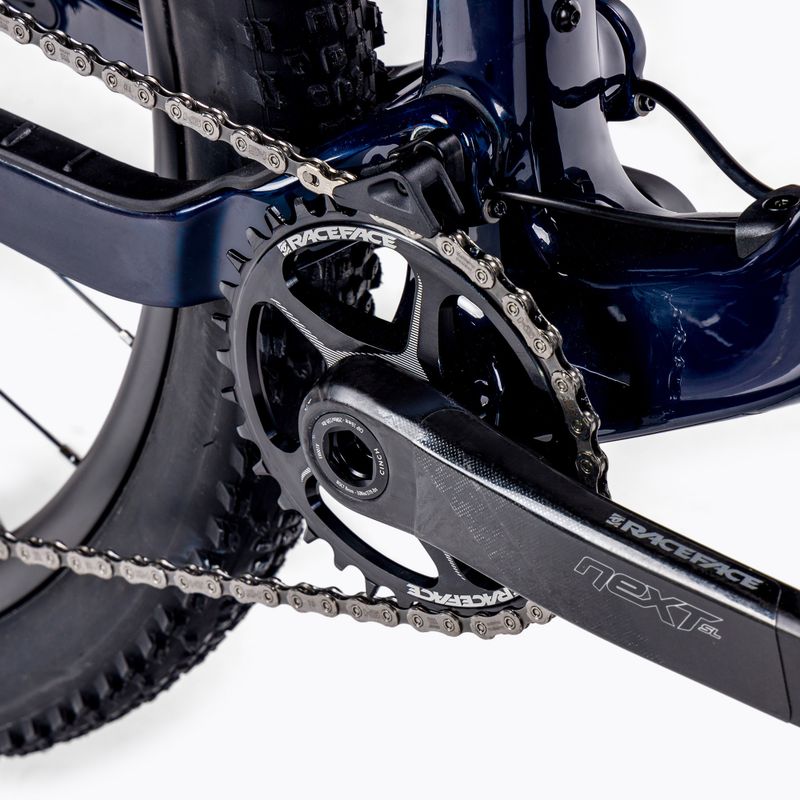

Crank mechanism Race Face Next-SL 34t

Cassette / Freewheel Shimano CS-M8100 10-51t 12-Speed

Chain Shimano M8100 12s

Brakes

Brakes (model) Shimano XT M8100 Hydraulic Disc

Brake type Hydraulic discs

Wheels

Wheel size 29"

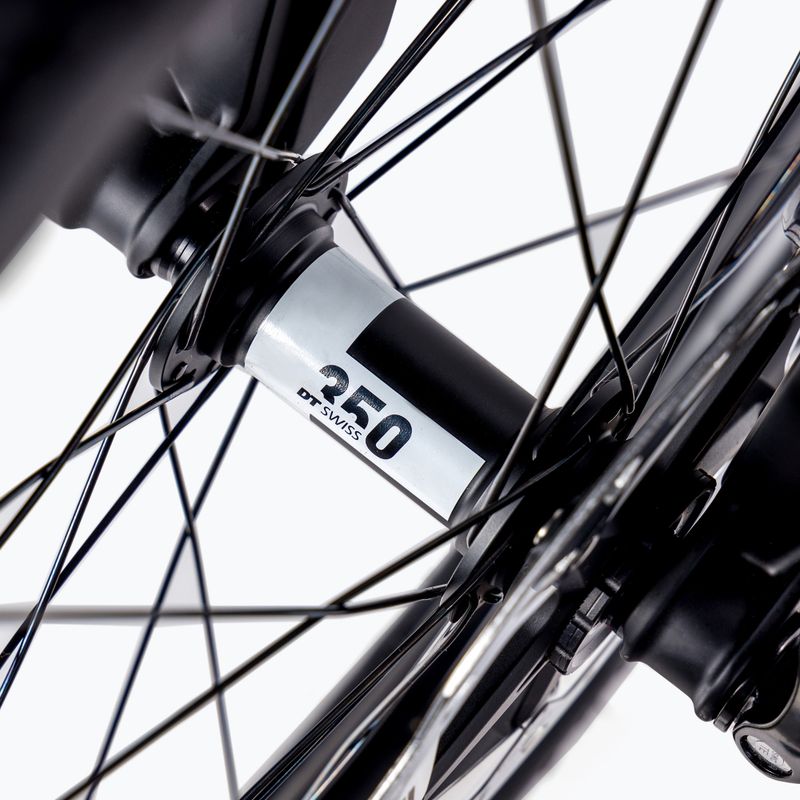

Wheels OC XC TEAM, 30 mm internal width, Tubeless ready, 28H

Tyres Maxxis Rekon Race 2.35" 120 TPI Exo TLR

Tubeless ready wheels Yes

Tubeless ready tyres Yes

Additional information

Lighting No

Mudguards No

Luggage carrier No

Warnings and producer's data

Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Producer Orbea S. Coop. | Polígono Industrial Goitondo, s/n, 48260 Mallabia, Bizkaia, Hiszpania | info@orbea.com

Product description

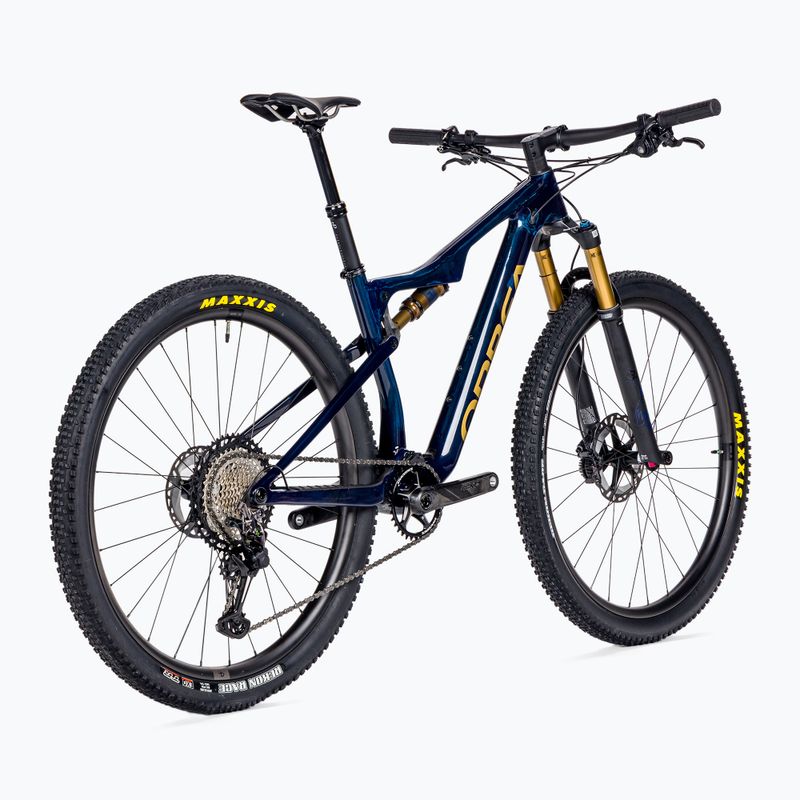

Orbea Oiz M-Pro TR mountain bike blue (OIZ M-PRO TR)

Orbea Oiz M-Pro TR mountain bike is one of the lightest and most efficient bikes in the mountain bike segment, allowing you to race and reach the podium in XC races, as well as climb steep peaks during weekend rides.

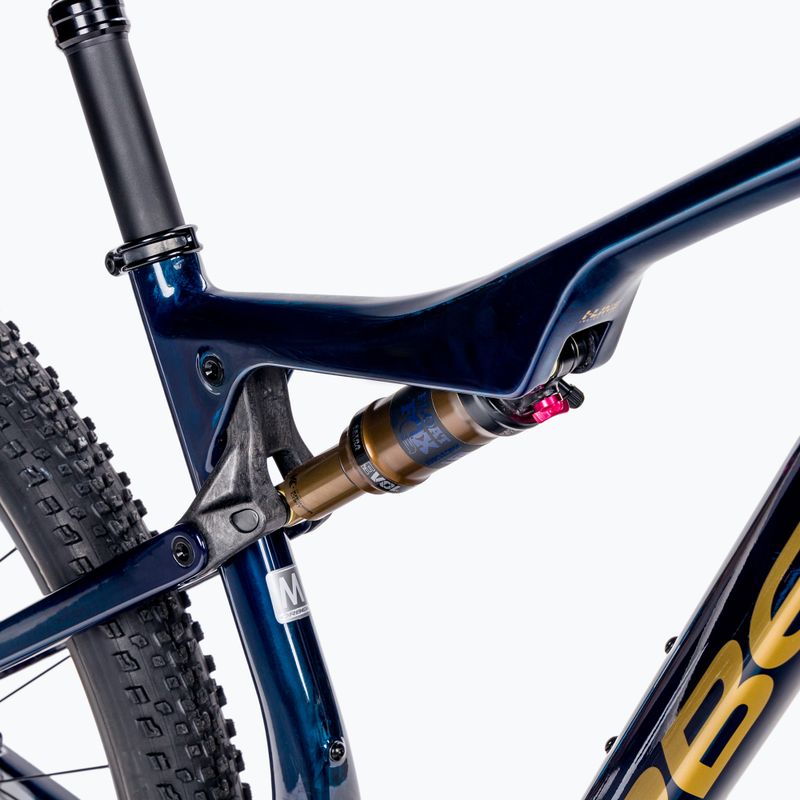

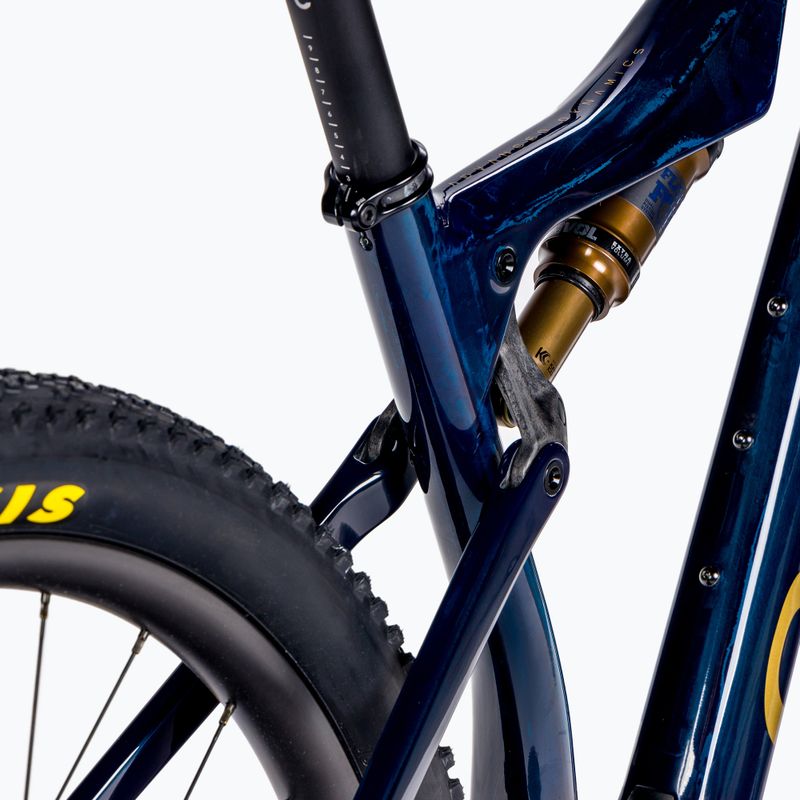

The model is equipped with Orbea's patented I-Line suspension. Because it is integrated into the top tube, it is well protected, and the rider has space for a water bottle and easy access to the controls.

The new OMX carbon frame is lighter, stiffer, and more agile, achieved by shortening the stays by 5 mm. The bike's unique geometry combined with top-quality OMR carbon fiber rims, industry-leading hubs, and super-light spokes.

Advantages

Carbon frame

When designing this bike, the focus was on selecting the right materials to ensure the highest quality. Therefore, the frame is made of carbon, which combines lightness and resilience in addition to effectively damping vibrations.

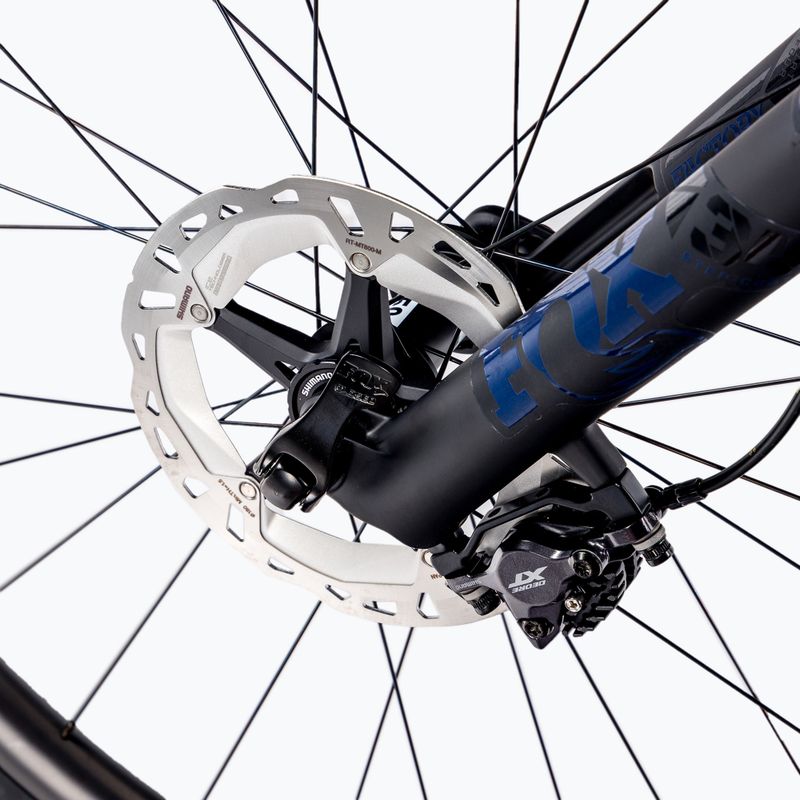

Hydraulic disc brakes

This mountain bike model uses hydraulic disc brakes, which have a very low failure rate, so they will be trouble-free even during frequent use. The undoubted advantage is greater braking power and modulation.

Tubeless ready tyres

The use of TLR (Tubeless Ready) technology has made it possible to use lower pressures and makes the tyres resistant to punctures. What's more, the system rules out the problem of ‘Snake Bite’, i.e. puncturing the inner tube by pinching it against the rim.

Full shock absorption

Allows easier traversing of off-road obstacles. Front and rear shock absorbers provide maximum wheel traction control and a balanced ride on the ground. The full suspension bike is very comfortable and soft to ride.

Drive 1x12

This bike uses 1x12 derailleurs, which provide smooth gradation and allow effortless gear changes. The large range of gear ratios allows you to adapt the gear to your current needs.

29" wheels

The use of 29 wheels has made it possible to provide more and better tyre contact with the ground, which makes it much easier to overcome bumps when riding over difficult terrain. This size guarantees good stability when riding at higher speeds.

Feedback (1)

100%

Łukasz
7.10.22 Color: Blue

Comfortable
For the price, it is suitable for off-road as well as city driving Ergonomic, stiff shock absorber, a little bumpy over bumps
Translated.Show original
Wygodny
Jak za taką cene to spoko nadaje się do jazdy w terenie jak i po mieście Ergonomiczny, sztywny amortyzator troche podbija na wybojach
Translate opinion

Review this product

Orbea Oiz M-Pro TR mountain bike blue

5 of 5 5.0 (1)

Bike assembly service available

Size Sizes table

Product temporarily unavailable

Set a notification to receive an email from us when the item is available.

Notify me

We are calculating the delivery time for you More
Delivery from 3,99 € More
Bulky parcel More
30 days to return More
Original products Check it out

Size	S	M	L	XL
Height (cm)	155-170	165-180	178-190	185-198
A - Seat tube (mm)	405	432	470	520
B - Horizontal pipe (mm)	567	596	619	643
C - Steerer tube (mm)	90	95	105	120
D - Rear triangle (mm)	430	430	430	430
E - Support height (mm)	334	334	334	334
F - Support lowering (mm)	40	40	40	40
G - Wheelbase (mm)	1096	1126	1150	1176
H - Head angle	68	68	68	68
I - Seat tube angle (°)	74	74	74	74
J - Crossover (mm)	724	739	749	756
K - Reach (mm)	397	425	446	466
L - Stack (mm)	593	598	608	622
M - Fork (mm)	524	524	524	524
