Frame

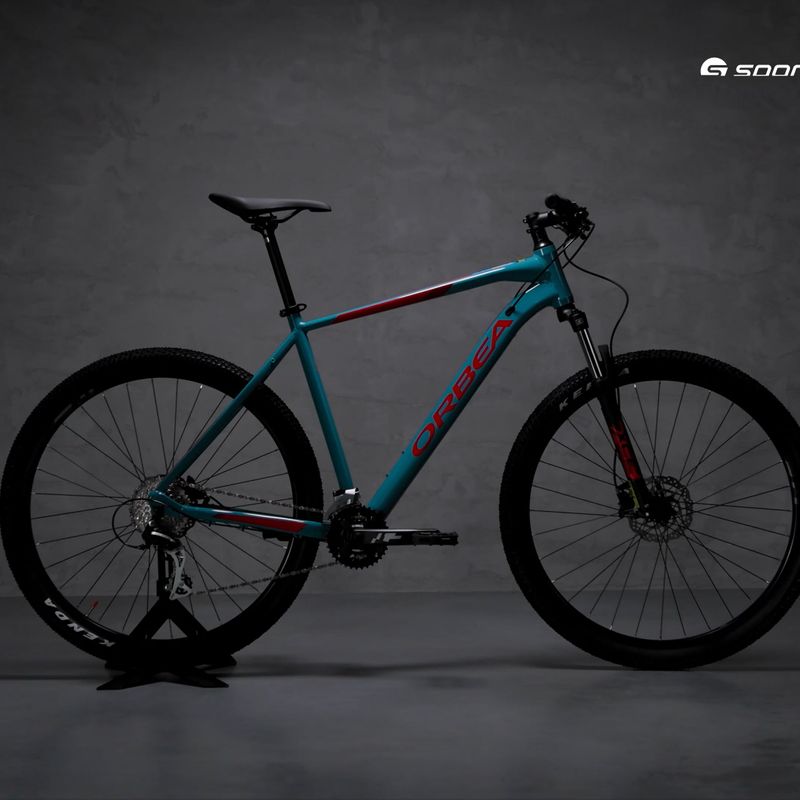

Frame Orbea MX Alloy only disc
Frame material Aluminium
Components
Steering wheel Alloy Flat 31.8mm 720mm
Handlebar support Alloy 31.8mm interface 7º
Depreciation Front
Rudders VP-Z104PD 1-1/8" Semi-Cartridge
Fork SR Suntour XCE 28 Coil 100mm QR
Saddle Selle Royal 2058 DRN
Bar Alloy 27.2 Offset 0
Drive
Derailleurs 2x8
Number of gears 16
Front derailleur (model) Shimano M315 31.8mm
Rear derailleur (model) Shimano Acera M360
Handles Shimano SL-M315
Crank mechanism Alloy forged 22x36t 7/8S
Cassette / Freewheel Sun Race CSM66 11-34t 8-Speed
Chain KMC X8
Brakes
Brakes (model) Shimano MT200 Hydraulic Disc
Brake type Hydraulic discs
Wheels
Wheel size 29"
Wheels Mach1 ER20 19c
Tyres Kenda K1153 2.35" 22TPI
Additional information
Lighting No
Mudguards No
Luggage carrier No
Folding condition of the bike Bike adjusted and pre-assembled
Other data
Sport Bicycles
Brand Orbea
Leading colour Blue
Season Year-round
Model/product code MX 29 50
Purpose MTB
Gender Male, Woman
Country of origin of the brand Spain
Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.
| Size | M | L | XL |
| Height (cm) | 169-180 | 178-190 | 188-200 |
| A - Seat tube (mm) | 430 | 470 | 540 |
| B - Horizontal pipe (mm) | 559 | 578 | 618 |
| C - Steerer tube (mm) | 104 | 115 | 138 |
| D - Rear triangle (mm) | 450 | 450 | 40 |
| E - Support height (mm) | 305 | 305 | 305 |
| F - Support lowering (mm) | 65 | 65 | 65 |
| G - Wheelbase (mm) | 1078 | 1098 | 1139 |
| H - Head angle | 70 | 70 | 70 |
| I - Seat tube angle (°) | 823,17 | 837,09 | 881,73 |
| J - Crossover (mm) | 397 | 397 | 430 |
| K - Reach (mm) | 623 | 633 | 655 |
| L - Stack (mm) | 506 | 506 | 506 |
| M - Fork (mm) | 42 | 46 | 46 |
Advantages
Front cushioning
The cushioning on the bike provides comfort when negotiating bumps in the road. This model features front wheel cushioning, which absorbs the force when hitting an obstacle and increases the level of safety.
Aluminium frame
The aluminium frame is characterised by its high resistance to scratches and damage. In addition, this material is characterised by its low weight, which makes carrying the bike no problem.
Hydraulic disc brakes
This mountain bike is equipped with hydraulic disc brakes, which have a very low failure rate so that use will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.
29" wheels
The use of 29 wheels has made it possible to provide more and better tyre contact with the ground, which makes it much easier to overcome bumps when riding over rough terrain. This size guarantees good stability when riding at higher speeds.
