Electric bicycle Superior eXR 6050 B Touring 14Ah black 801.2023.78020

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.

Model/product code eXR 6050 B Touring 801.2023.78020

Leading colour Black

Brand Superior

Country of origin of the brand European Union

Gender Male, Woman

Season Year-round

Engine location Central

Handlebar stem material Aluminium

Engine power 250 W

Crank mechanism ONE1 EC33-BH3-F9-BNI-L/R, 38T

Wheel size 28"

Frame Alu 6061 T6, Comfort Geometry, Smooth Welding, Bosch system ready, integrated battery, Inner Cable Routing

Derailleurs 1x9

Sport Bicycles

Cassette / Freewheel SHIMANO CS-HG200-9, 11-36T

Rear derailleur (model) SHIMANO Alivio RD-M3100 - 9 SPEED

Handles SHIMANO ALIVIO SL-M3100-R RapidFire Plus, 9-speed

Depreciation Front

Handlebar material Aluminium

Brakes (model) SHIMANO BL-MT200/BR-MT200

Purpose Trekking

Maximum range 140 km

Chain KMC e9S

Type of derailleur Mechanical

Handlebar support ONE1 Python Alloy, 31.8mm, Adjustable

Bar ONE1 Sport Alloy, SP C207, 30.9mm

Tyres Schwalbe G-ONE Bite

Frame material Aluminium

Fork RST Volant, Tapered, 80mm travel

Engine model BOSCH ActiveLine Plus, 36V, 250W, 50Nm

Saddle Selle Royal Vivo DRN

Weight of bike (estimated) 24,4 kg

Steering wheel ONE1 Alloy, MTB AL-320BT, 3° upsweep, 15° backsweep, 20mm rise, 680mm, 31.8mm

Brake type Hydraulic discs

Number of gears 9

Wheels Stars J26S, 32H

Battery capacity 13,4Ah

Stan złożenia roweru Bike adjusted and pre-assembled

Maximum torque 50 Nm

Maximum speed 25 km/h

Electric bicycle Superior eXR 6050 B Touring 14Ah black 801.2023.78020 2

Sizes

Size	M/18"	L/20"	XL/22"
Height (cm)	170-180	181-190	191-200
A - Seat tube (mm)	457	510	559
B - Horizontal pipe (mm)	590	610	630
C - Kąt siodełka (°)	73	73,3	73,5
D - Head angle (°)	67	67	67
E - Rear triangle (mm)	-	-	-
F - Wheel base (mm)	1185	1212	1233
G - Rura sterowa (mm)	140	150	160
R - Reach (mm)	399	420	440
S - Stack (mm)	625	634	643
BBD - Support lowering (mm)	-	-	-

Product description

Advantages

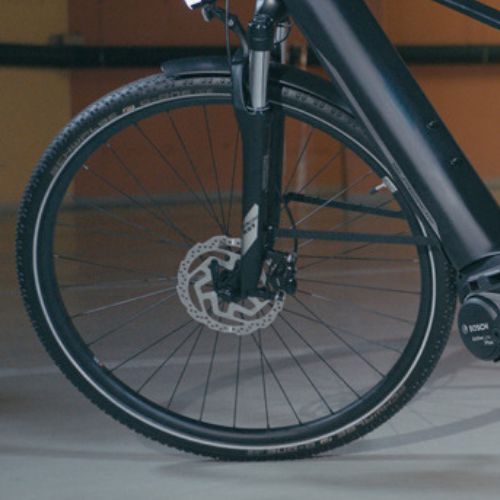

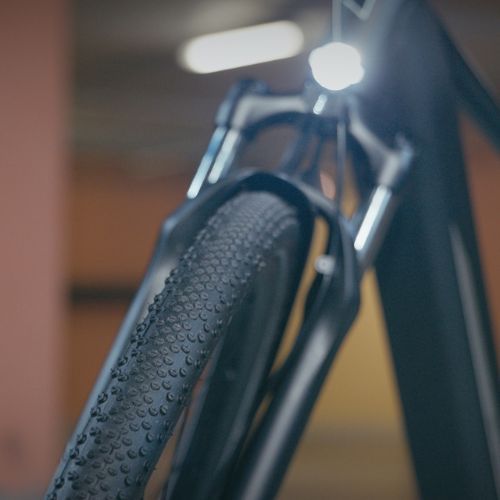

Front cushioning

The cushioning makes cycling over uneven ground much more pleasant and comfortable. This model is equipped with front suspension, which ensures safety and absorbs the force when the front wheel hits an obstacle.

Aluminium frame

The use of an aluminium frame in this model of bicycle makes it extremely light and strong, so that moving the bicycle from place to place is not a problem. In addition, this material is characterised by its resistance to deformation.

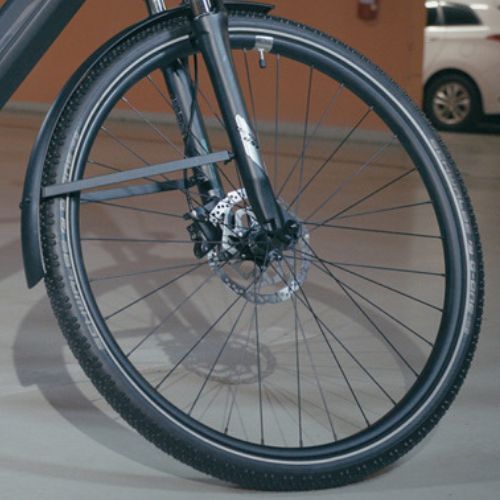

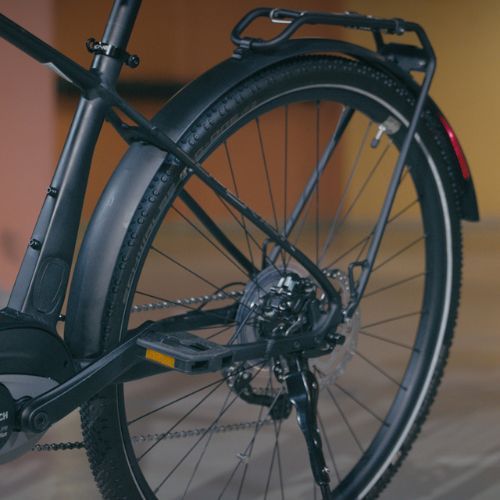

Hydraulic disc brakes

The given model of the bike is equipped with hydraulic disc brakes. This type has a very low failure rate, ensuring that the brakes will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.

28" wheels

The use of 28-inch wheels on this model has made the bike faster to reach higher speeds and much easier to maintain. This wheel size allows the bike to negotiate obstacles comfortably and provides better stability at higher speeds.
