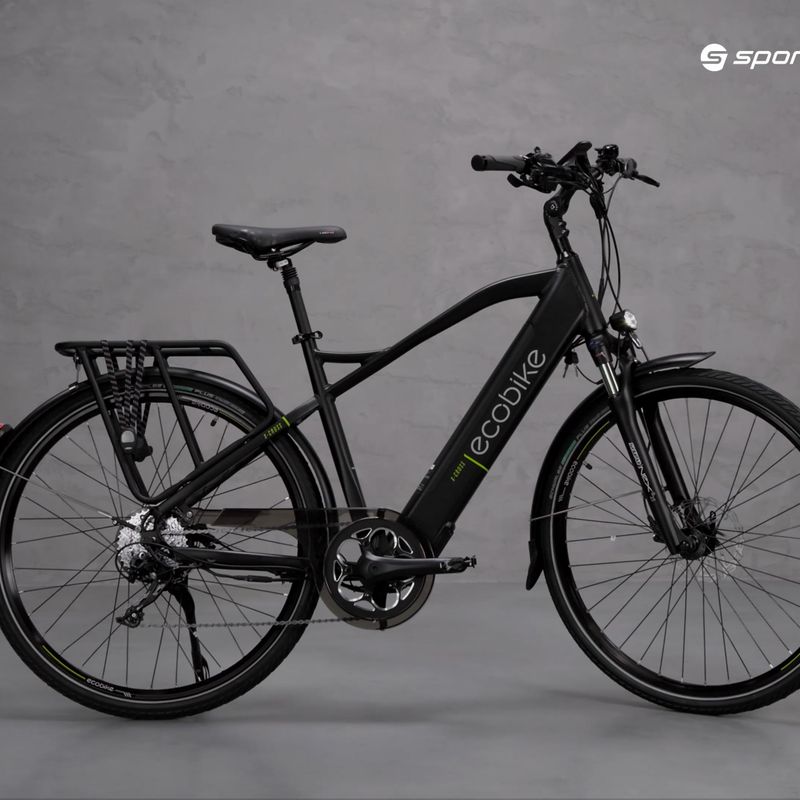

EcoBike X-Cross M/17.5Ah X-Cross LG electric bike black 1010303 (1010301)

Frame

Frame 20" hydroformed aluminium

Frame material Aluminium

Components

Steering wheel Promax HB-3188 (22,2 mm x 31,8 mm x 700 mm)

Steering wheel adjustment Yes

Handlebar support Promax MA-595S (31,8 mm x 90 mm)

Grips VELO VLG-776

Depreciation Front

Fork SunTour SF15 NEX-E25 LO DS 700C (stroke: 63 mm)

Saddle Selle Royal Lookin-A200UR0

Bar PROMAX SP-886 (27,2 mm x 350 mm)

Drive

Derailleurs 1x10

Number of gears 10

Rear derailleur (model) Microshift RD XLE 10 SPEED LONG CAGE

Handles Microshift XLE Xpress Shifters 10 Indicator

Crank mechanism TOPWHEEL OUNCE248AC (48T x 170 mm)

Cassette / Freewheel Microshift H-Series 10 Speed / 11-36

Chain KMC E10

Brakes

Brakes (model) ALHONGA HJ-HT472

Brake type Hydraulic discs

Wheels

Wheel size 28"

Wheels STARS 28" three-chambered rim

Tyres 28 x 1.75 Schwalbe Energizer Plus

Hubs KT-K68F-QR M9*13G*36H*100W - front hub

spokes Sapim 13G / Front wheel: 290 mm / Rear wheel: 249 mm

Additional information

Support Yes

Lighting Yes

Mudguards Yes

Luggage carrier Yes

Maximum user weight 125 kg

Weight of bike (estimated) 25,3 kg

Folding condition of the bike Bike adjusted and pre-assembled

Other data

Sport Bicycles

Brand EcoBike

Leading colour Black

Season Year-round

Model/product code X-Cross M/17,5Ah X-Cross LG 1010303

Gender Male, Woman

Country of origin of the brand Poland

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.

Model colour 2000033326

Engine model Bafang

Engine location Hub

Engine power 250 W

Maximum engine power 560 W

Maximum torque 45 Nm

Battery type Lithium-ion

Battery capacity 630 Wh

Battery location In the frame

Maximum range 140 km

Charger 220-240V／42V / 2A / D type

Frame size	20"
Height (cm)	175-190
A - Rura pozioma (mm)	595
B - Rura sterowa (mm)	160
C - Rura podsiodłowa (mm)	508
D - Wheel base (mm)	1113,7
E - Kąt siodełka (°)	73
F - Kąt główki (°)	70

Advantages

Aluminium frame

The use of an aluminium frame in this model of bicycle makes it extremely light and strong, so that moving the bicycle from place to place is not a problem. In addition, this material is characterised by its resistance to deformation.

Long range

This e-bike model has been designed to guarantee the highest possible level of quality. That is why the bike has been equipped with an optimised battery that provides a long range and freedom to explore the terrain.

Hydraulic disc brakes

The given model of the bike is equipped with hydraulic disc brakes. This type has a very low failure rate, ensuring that the brakes will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.

28" wheels

The use of 28-inch wheels on this model has made the bike faster to reach higher speeds and much easier to maintain. This wheel size allows the bike to negotiate obstacles comfortably and provides better stability at higher speeds.

Drive 1x10

The 1x10 derailleurs used on this e-bike model guarantee smooth gradation and allow effortless gear changes. The large gear range allows you to adapt the gear to the current road conditions.
