Kellys Spider X40 29" Mountain Bike is a versatile model designed for recreational riding in the terrain. The large wheels provide stability and smooth navigation over obstacles, while the comfortable geometry makes longer trips easier. It is a good choice for those who value comfort and versatility.

Basic data

Brand Kellys
Country of origin of the brand European Union
Sport Bicycles
Gender Male, Woman
Season Year-round
Leading colour Orange
Model/product code Spider X40 29" 83815
Code 2000191899

Frame

Frame KELLYS Alutec RRC 29" - Race Ready Concept, 1,5" tapered HT
Frame material Aluminium

Components

Steering wheel KLS Active FlatBar - diam 31.8 mm / width 720 mm (M - XL)
Handlebar support KLS Active - diam 28.6 mm / bar bore 31.8 mm / length 60 mm (M), 70 mm (L - XL)
Grips KLS Advancer
Depreciation Front
Rudders Semi-integrated
Fork SR SUNTOUR XCE28 DS (29"), 100 mm, coil spring
Saddle KLS Ascend
Bar KLS Active - diam 30.9 mm / length 400 mm

Drive

Derailleurs 1x8
Number of gears 8
Rear derailleur (model) microSHIFT Estes M220
Handles microSHIFT Estes TS200-8R
Suport Cartridge (122mm)
Crank mechanism PROWHEEL (32T) - length 170 mm (M), 175 mm (L - XL)
Cassette / Freewheel microSHIFT M680-8 (11-42T)
Chain KMC Z8

Brakes

Brakes (model) Shimano MT200 Hydraulic Disc
Brake type Hydraulic discs
Brake discs 160 mm front / 160 mm rear

Wheels

Wheel size 29"
Wheels KLS Draft 23 Disc 622x23 (32 holes)
Tyres WTB Ranger Comp 55-622 (29"x2.25)
Hubs SHIMANO QC300 Disc Center Lock (32 holes)
spokes Steel

Additional information

Pedals included Yes

Warnings and producer's data

Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.
Producer KELLYS BICYCLES s.r.o. | Slnečná cesta 374, 922 01 Veľké Orvište, Słowacja | kellys@kellysbike.com

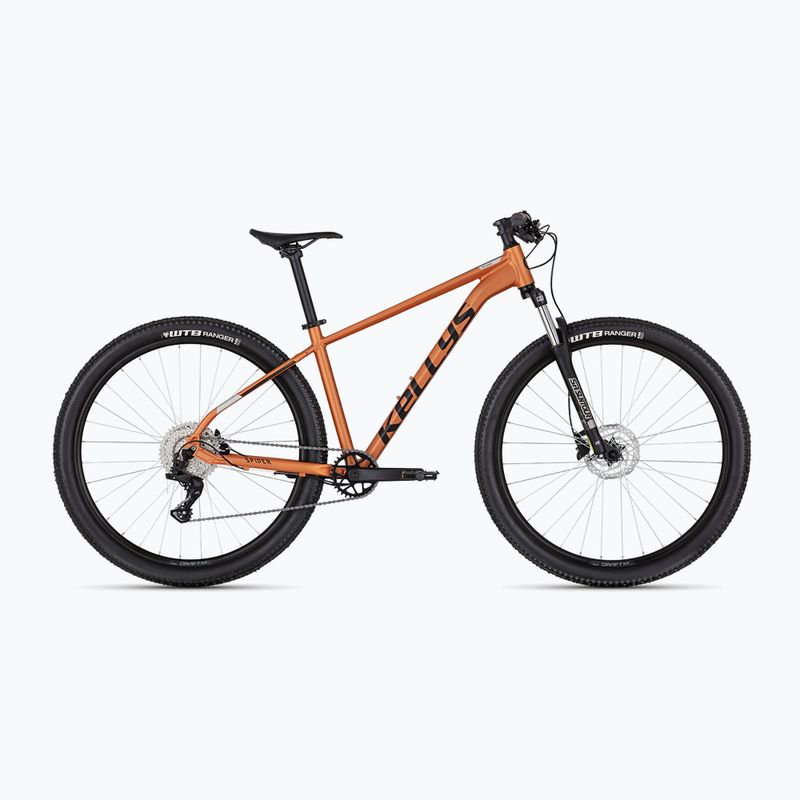

Mountain bike Kellys Spider X40 29" dusty orange (83815)

Kellys Spider X40 29" mountain bike in dusty orange is an excellent choice for enthusiasts of riding on tough terrain. The KELLYS Alutec RRC aluminium frame, designed under the Race Ready Concept, provides exceptional durability and lightness. With the SR SUNTOUR XCE28 DS front suspension featuring 100 mm of travel, the bike handles uneven surfaces brilliantly, offering a comfortable ride even on demanding trails.

Advanced technological solutions

The Kellys Spider X40 29" dusty orange mountain bike is equipped with advanced Shimano MT200 hydraulic disc brakes, ensuring reliable and precise braking in any situation. The PROWHEEL crankset with a 32-tooth chainring, along with the 8-speed microSHIFT Estes M220 gear system, enhances riding efficiency, allowing for smooth gear shifts and adaptation to various terrain conditions. The KLS Active FlatBar handlebar and KLS Advancer grips provide comfort and control over the bike.

High-quality components

The Kellys Spider X40 29" dusty orange mountain bike features robust KLS Draft 23 Disc wheels that are 29 inches in size, providing stability and smooth riding. The WTB Ranger Comp tyres, measuring 2.25 inches in width, guarantee excellent grip and control on diverse surfaces. SHIMANO QC300 Disc Center Lock hubs and steel spokes reinforce the entire wheel structure, offering exceptional durability and reliability.

Comfort and fit

The Kellys Spider X40 29" dusty orange mountain bike is designed with user comfort in mind. The KLS Ascend saddle and KLS Active seat post ensure comfort during long rides. The KLS Active stem, available in various lengths, and semi-integrated headsets allow for precise adjustment of the bike to meet the individual needs of each rider.

Kellys Spider X40 29" mountain bike - features:

  • KELLYS Alutec RRC aluminium frame providing durability and lightness;
  • SR SUNTOUR XCE28 DS front suspension with 100 mm travel for comfortable riding;
  • Shimano MT200 hydraulic disc brakes offering reliable braking;
  • PROWHEEL crankset with a 32-tooth chainring enhancing riding efficiency;
  • 8-speed microSHIFT Estes M220 gear system for smooth shifting;
  • KLS Active FlatBar handlebar and KLS Advancer grips providing comfort and control;
  • Robust KLS Draft 23 Disc wheels at 29 inches for stability;
  • WTB Ranger Comp tyres at 2.25 inches wide ensuring excellent grip;
  • SHIMANO QC300 Disc Center Lock hubs and steel spokes for wheel durability;
  • KLS Ascend saddle and KLS Active seat post for user comfort;
  • KLS Active stem and semi-integrated headsets for precise adjustment.
Feedback

There are no reviews yet, be the first!

Review this product

Mountain bike Kellys Spider X40 29" dusty orange

Mountain bike Kellys Spider X40 29" dusty orange

Overall rating
Please enter the order number under which you purchased this product at Sportano.

Mountain bike Kellys Spider X40 29" dusty orange

No opinion

Bike assembly service available

Size Sizes table
Choose an Option...

Choose an Option

Sizes table

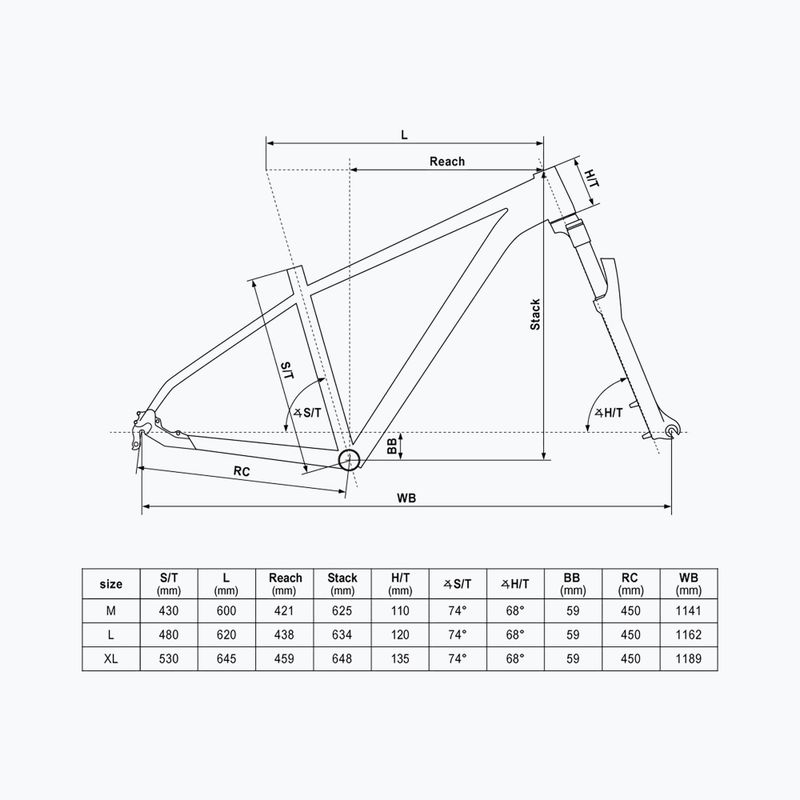

    Below you will find information to help you choose the right size when purchasing the Spider 29" bike by Kellys.

    Size S M L XL
    Height (cm) 160-170 165-180 175-185 180-195
    S/T (mm) 380 430 480 530
    L (mm) 580 600 620 645
    Reach (mm) 404 421 438 459
    Stack (mm) 615 625 634 648
    H/T (mm) 100 110 120 135
    S/T (°) 74 74 74 74
    H/T (°) 68 68 68 68
    BB (mm) 59 59 59 59
    RC (mm) 450 450 450 450
    WB (mm) 1120 1141 1162 1189
