Basic data

Sport Bicycles
Brand Marin
Leading colour Brown
Season Year-round
Model/product code Alpine Trail 1 29 737513002
Gender Male, Woman
Country of origin of the brand USA
Code 2000149573

Frame

Frame Series 4 6061 Aluminum, 29” Wheels, 160 mm Travel MultiTrac LT Suspension Platform, Integrated Downtube Storage
Frame material Aluminium

Components

Steering wheel Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Handlebar width 780 mm
Handlebar material Aluminium
Handlebar support Marin 3D Forged Alloy, 35mm
Handlebar stem material Aluminium
Grips Marin Grizzly Lock-On
Depreciation Full
Rudders FSA Custom, Adjustable HTA Design
Fork Fox 36 Rhythm, 170 mm Travel, 29", Grip Damper, 110x10 Kabolt, 44 mm Offset

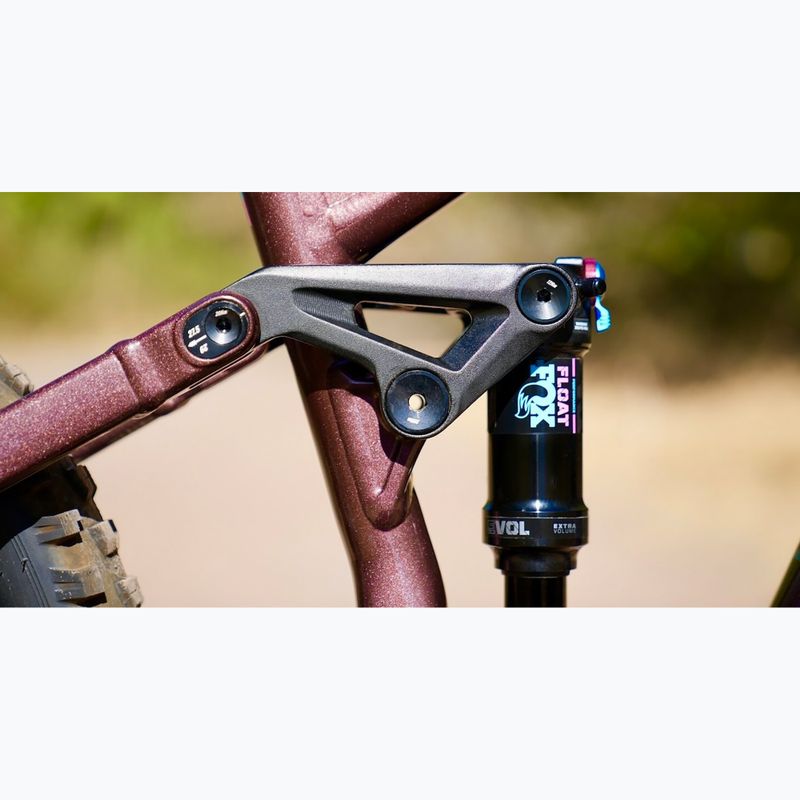

Damper Fox Float Performance, 205x65 mm, 30xM8 Lower Hardware, Custom Tune
Saddle Marin Speed Concept
Bar TranzX, YSP39 1x Remote, 34.9 mm Seatpost Diameter, Travel S = 150 mm, M/L = 170 mm, XL = 200 mm

Drive

Type of derailleur Mechanical
Derailleurs 1x12
Number of gears 12
Rear derailleur (model) Shimano Deore, 12-Speed, SGS
Handles Shimano Deore, 12-Speed, SL-6100-IR
Suport FSA MegaExo 73 mm BSA
Crank mechanism FSA Comet Heavy Duty, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
Cassette / Freewheel Shimano Deore M6100 12-Speed, 10-51T
Chain KMC X-12 Silver and Black

Brakes

Brakes (model) TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203 mm Roto
Brake type Hydraulic discs
Brake discs 203 mm / 203 mm

Wheels

Wheel size 29", 27,5"
Wheels Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible
Tyres Vee Tire Co. Snap WCE, 29x2.6" Front / 27.5x2.6" Rear, Top 40 Compound, Enduro Core, 90 TPI, Tubeless Compatible
Hubs Shimano FH-TC500, 110x15 mm, Shimano HB-TC500, 148x12 mm, Micro Spline Freehub Body
spokes 14g Black Stainless Steel
Tubeless ready wheels Yes
Tubeless ready tyres Yes

Additional information

Pedals included No

Warnings and producer's data

Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.
Producer Marin Bikes | 1450 Technology Lane, Suite 100, Petaluma, CA 94954, USA | [email protected] | MOTOR-LAND SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ | Kolejowa 362/364 05-092 Dziekanów Nowy Polska | [email protected]

Other data

Service label Bike assembly service available

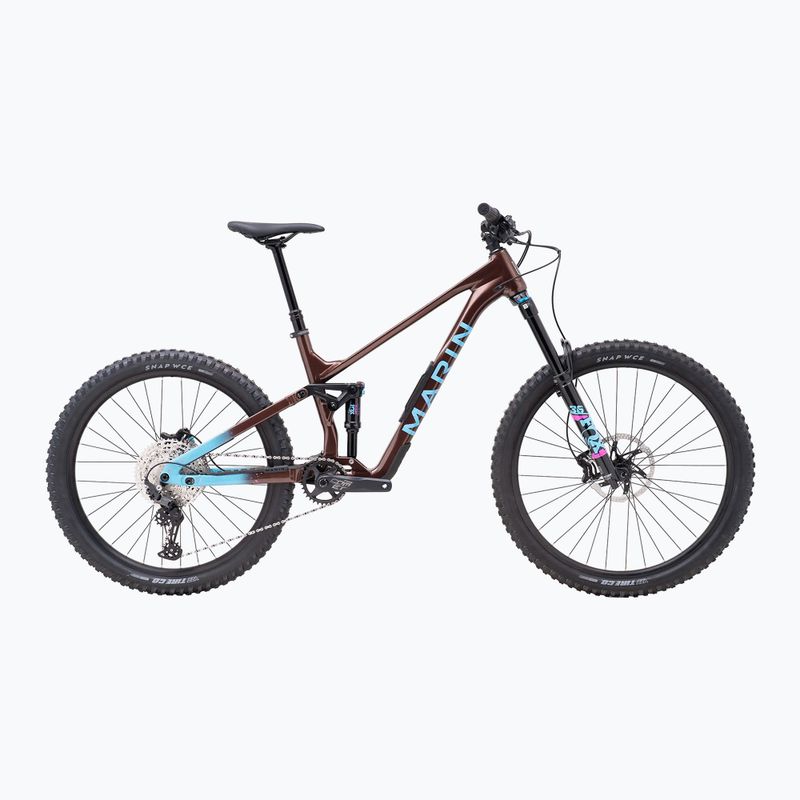

Mountain bike Marin Alpine Trail 1 29/27.5 gloss brown/blue/light blue (737513002)

Advantages

Aluminium frame
When designing this bike, the focus was on selecting the right materials to ensure the highest quality. Therefore, the frame is made of aluminium, which combines durability and low weight.
Hydraulic disc brakes
This mountain bike model uses hydraulic disc brakes, which have a very low failure rate, so they will be trouble-free even during frequent use. The undoubted advantage is greater braking power and modulation.
Tubeless ready tyres
The use of TLR (Tubeless Ready) technology has made it possible to use lower pressures and makes the tyres resistant to punctures. What's more, the system rules out the problem of ‘Snake Bite’, i.e. puncturing the inner tube by pinching it against the rim.
Full shock absorption
Allows easier traversing of off-road obstacles. Front and rear shock absorbers provide maximum wheel traction control and a balanced ride on the ground. The full suspension bike is very comfortable and soft to ride.
Drive 1x12
This bike uses 1x12 derailleurs, which provide smooth gradation and allow effortless gear changes. The large range of gear ratios allows you to adapt the gear to your current needs.
27.5" wheels
The 27.5-inch wheels that this bike model is equipped with are characterised by the fact that they are easy to accelerate and the bike is more agile. In addition, riding on wheels of this size allows for a dynamic ride and provides comfort on difficult surfaces.
29" wheels
The use of 29 wheels has made it possible to provide more and better tyre contact with the ground, which makes it much easier to overcome bumps when riding over difficult terrain. This size guarantees good stability when riding at higher speeds.
Feedback

There are no reviews yet, be the first!

Review this product

Mountain bike Marin Alpine Trail 1 29/27.5 gloss brown/blue/light blue

Mountain bike Marin Alpine Trail 1 29/27.5 gloss brown/blue/light blue

Overall rating
Please enter the order number under which you purchased this product at Sportano.

Mountain bike Marin Alpine Trail 1 29/27.5 gloss brown/blue/light blue New

No opinion

Bike assembly service available

Size M Sizes table
Choose an Option...

Choose an Option

Sizes table

    Below you will find information to help you choose the right size when purchasing the Marin Alpine Trail 1 bike.

    Size M
    Height (cm) 168-178
    A - STACK 633.51
    B - REACH 460
    63.5°
    D - Steering tube (mm) 115
    E - Kąt siodełka (°)
    79°
    420
    592
    352
    7/24
    435
    1248.11
    68 9.88
    44
    You save €480.00 €3,339.00
    €2,859.00
