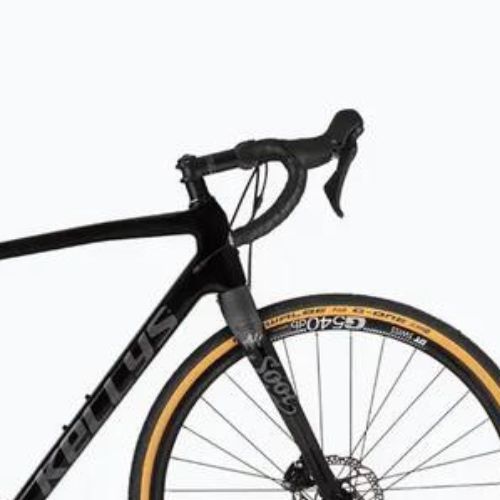

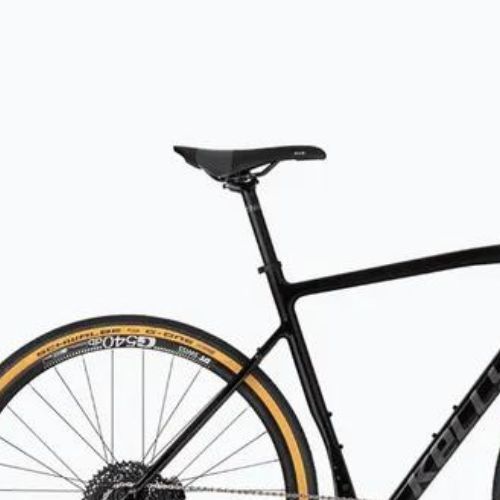

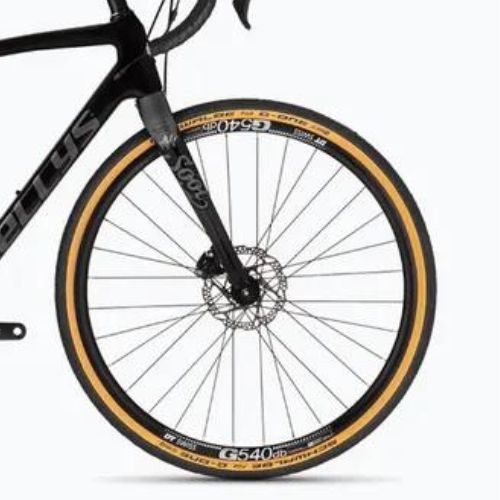

Kellys Soot 90 black/grey gravel bike

Frame

Frame: KELLYS Gravel Concept Carbon Disc / tapered HT, flat mount, internal routing / 12 mm thru axle

Frame material: Carbon fibre

Components

Steering wheel: GravelBar - diam 31.8mm / width 400mm (S), 420mm (M), 440mm (L)

Handlebar support: KLS Active Road - diam 28.6mm / bar bore 31.8mm / 6° / length 70mm (S), 90mm (M), 110mm (L)

Grips: KLS bar tape

Depreciation: No

Rudders: FSA 1.5 semi-integrated

Fork: KELLYS Carbon Disc, 1.5 tapered steerer / flat mount disc brake / 12 mm thru axle

Saddle: WTB Volt

Bar: KLS Active Road - diam 27.2mm / length 350mm (S), 400mm (M-L)

Drive

Type of derailleur: Mechanical

Derailleurs: 1x11

Number of gears: 11

Rear derailleur (model): SHIMANO GRX RX812

Handles: SHIMANO GRX BL-RX600 / ST-RX600 Dual Control

Suport: SHIMANO Press-Fit BB-RS500-PB

Crank mechanism: SHIMANO GRX RX600-1 (40T) - length 172.5mm (S-M), 175mm (L)

Cassette / Freewheel: SUNRACE CSMS7 (11-42T)

Chain: KMC X11 EL

Brakes

Brakes (model): SHIMANO GRX RX400 Hydraulic Disc

Brake type: Hydraulic discs

Brake discs: 160 mm front / 160 mm rear

Wheels

Wheel size: 28"

Wheels: DT SWISS G 540 Disc 700Cx24 (32 holes)

Tyres: SCHWALBE G-One Allround 40-622 (700x38C) RaceGuard, folding

Axle type: 12 x 172 mm, 12 x 118 mm

Hubs: NOVATEC Disc (32 holes)

Additional information

Folding condition of the bike: Bike adjusted and pre-assembled

Other data

Sport: Bicycles

Brand: Kellys

Leading colour: Black

Season: Year-round

Model/product code: Soot 90 76426

Gender: Male, Woman

Country of origin of the brand: European Union

Reservations: The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Sizes table

Size	S	M	L
Height (cm)	170-180	175-190	180-195
S/T (mm)	520	540	560
L (mm)	535	545	560
Reach (mm)	375	371	380
Stack (mm)	557	568	589
H/T (mm)	140	150	170
S/T (°)	74	73	73
H/T (°)	71	71,5	72
BB (mm)	67	67	67
FO (mm)	50	50	50
RC (mm)	435	435	435
WB (mm)	1027	1021	1032

Product description

Advantages

Carbon frame

This bike has been created with well thought-out materials. Carbon was used for the frame, which stands out for its very low weight. In addition, this material has a high strength and resilience index.

Hydraulic disc brakes

This model of bike uses a reliable type of brake, the hydraulic disc. This type provides high braking power and modulation regardless of road conditions. In addition, the brakes have a low failure rate.

28" wheels

The 28-inch wheels are characterised by prolonged wear and allow faster speeds, which are far easier to maintain. Compared to smaller sizes, these wheels provide better stability at higher speeds.

Carbon fork

The material used to make this fork is characterised by extreme lightness. The carbon fork is characterised by its high ability to absorb the power generated when riding over rough terrain and combines strength and low weight.
