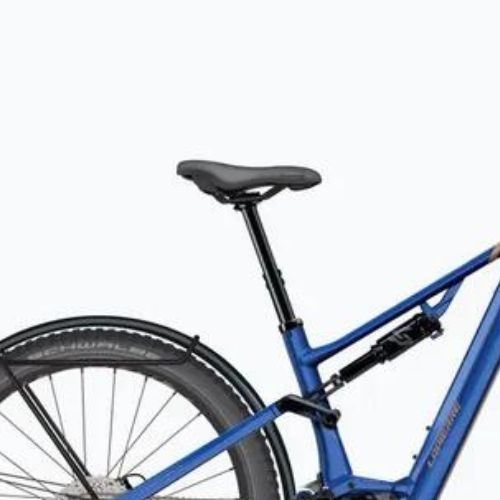

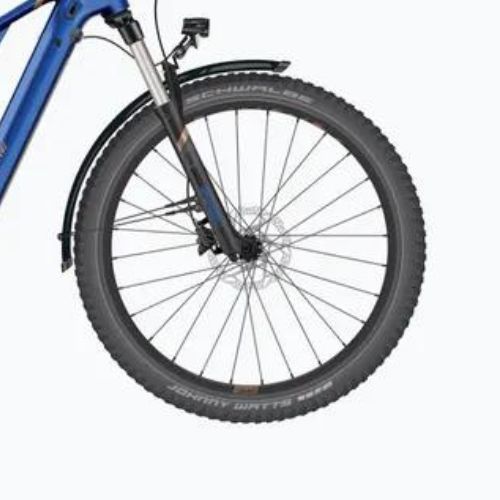

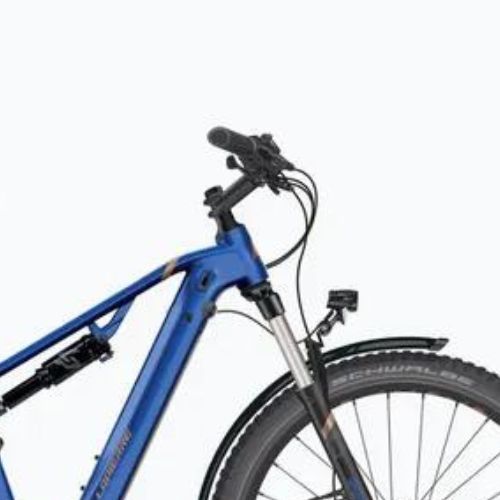

Lapierre E-Explorer FS 9.7 750Wh electric bike (LLGNA470)

Frame

Frame New Overvolt FS 140mm Travel Integrated Bosch Supreme 5 alloy UDH Dropout + Kickstand & Fenders Ready

Frame material Aluminium

Components

Steering wheel Lapierre alloy 6061DB, Width: 720mm (S/M) 740mm (L/XL), Rise: 15mm, Ø: 31.8mm

Handlebar support Lapierre CNC, 0°, Ø: 31.8mm, L: 45mm (S/M), 50mm (L/XL)

Depreciation Full

Rudders FSA NO.55R/57E, Black Anodized, 1-1/8"-1.5"

Fork RockShox 35 Silver TK Air boost 15x110mm 29'' 140mm travel (e-MtB decals) Fender compatible

Damper Lapierre Metric 210x47.5

Saddle Selle Royal Vivo Ergo Reflective

Bar Lapierre dropper, Ø: 31.6mm, travel 100mm (S), 130mm (M), 150mm (L/XL) + Shimano lever

Drive

Derailleurs 1x11

Number of gears 11

Rear derailleur (model) SHIMANO DEORE RD-M5100 Shadow Plus

Handles SHIMANO Deore SL-M5100 11-speed

Crank mechanism Lapierre Overvolt ISIS 165mm (S/M) / 170mm (L/XL) + FSA Megatooth Chainring 38T

Cassette / Freewheel Shimano Deore CS-M5100, 11-speed, 11-51T

Chain KMC E11 Turbo

Brakes

Brakes (model) Shimano M4100

Brake type Hydraulic discs

Brake discs Shimano SM-RT30/RT-EM300 203 mm

Wheels

Wheel size 27,5"

Wheels Lapierre 27.5", eAM+ 32H, 584x30C, Tubeless Ready

Tyres Schwalbe Johnny Watts 65-584, DD, Raceguard, 67TPI

Hubs Lapierre DA210, 2 Sealed Bearing , boost 15x110, 32H, Center Lock - front hub, Lapierre DA210, 4 sealed bearings, boost 12x148, 32H, Center Lock - rear hub

Tubeless ready wheels Yes

Additional information

Pedals included Yes

Weight of bike (estimated) 29 kg

Folding condition of the bike Bike adjusted and pre-assembled

Other data

Sport Bicycles

Brand Lapierre

Leading colour Blue

Season Year-round

Model/product code Lapierre E-Explorer FS 9.7 LLGNA470

Purpose MTB

Gender Male, Woman

Country of origin of the brand France

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.

Model colour 2000102933

Engine model BOSCH Performance Line CX

Engine location Central

Engine power 250 W

Maximum torque 85 Nm

Battery capacity 750 Wh

Size	S	M	L	XL
Height (cm)	150-170	166-178	176-186	>184
ST (mm)	390	430	470	510
TT (mm)	588	610	634	664
HA (°)	65,5	66	66	66
SA (°)	76	76	76	76
RC (mm)	460	460	460	460
HT (mm)	112	120	140	160
BB (mm)	-30	-30	-30	-30
Frk Length (mm)	140	140	140	140
Frk Offset	550	550	550	550
Stack	51	51	51	51
Reach	611	621	640	658
WB	436	4551	475	500

Advantages

Aluminium frame

The use of an aluminium frame in this model of bicycle makes it extremely light and strong, so that moving the bicycle from place to place is not a problem. In addition, this material is characterised by its resistance to deformation.

Hydraulic disc brakes

The given model of the bike is equipped with hydraulic disc brakes. This type has a very low failure rate, ensuring that the brakes will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.

Full shock absorption

Full suspension, i.e. both the front and rear wheels, allows you to negotiate obstacles in difficult terrain more comfortably. A bike with full suspension provides more grip and efficiency.

Drive 1x11

The 1x11 derailleurs used on this e-bike model guarantee smooth gradation and allow effortless gear changes. The large gear range allows you to adapt the gear to the current road conditions.

27.5" wheels

The 27.5-inch wheels that this bike model is equipped with are characterised by the fact that they are easy to accelerate and the bike is more agile. In addition, riding on wheels of this size allows for a dynamic ride and provides comfort on difficult surfaces.
