Orbea Laufey 24 H20 is a bike for young explorers, providing comfort and confidence on every trail.

Basic data

Brand Orbea
Country of origin of the brand Spain
Sport Bicycles
Gender Boy, Girl
Season Year-round
Leading colour Yellow
Model/product code Laufey 24 H20 R01124KM
Code 2000102105

Frame

Frame Orbea Laufey 24 6061 Aluminum 2021, 135x9 QR, Post Mount Disc Mount, 31.6 Seat Post, Internal Cable Routing, Removable hanger
Frame material Aluminium

Components

Steering wheel Alloy, 31.8mm, riser, 560mm
Handlebar support Race Face Ride
Grips OC Lock On
Depreciation Front
Rudders VP-Z104PD 1-1/8" Semi-Cartridge
Fork SR Suntour XCR LO Air 80mm QR
Saddle Selle Royal Vivo Junior
Bar OC Mountain Control MC21, 31.6mm, Dropper

Drive

Derailleurs 1x9
Number of gears 9
Rear derailleur (model) Shimano Cues U4000 GS Shadow
Handles Shimano Cues SL-U4000
Crank mechanism Extra light 32t, 152mm, w/Chainguard
Cassette / Freewheel Shimano CS-LG300 9-Speed (11-46T)
Chain KMC eGlide

Brakes

Brakes (model) Clarks M2 Hydraulic Disc w/Kids Lever
Brake type Hydraulic discs

Wheels

Wheel size 24"
Wheels Mach1 Klixx 23c Tubeless Ready
Tyres Schwalbe Rocket Ron Perf Foldable, 24x2.35

Additional information

Mudguards Orbea Custom fork
Pedals included Yes
Side wheels No
Maximum user weight 50 kg
Age of child 6-10 years
User height range 125 - 150 cm
Height to saddle 66,4 - 84,2 cm

Warnings and producer's data

Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.
Producer Orbea S. Coop. | Polígono Industrial Goitondo, s/n, 48260 Mallabia, Bizkaia, Hiszpania | info@orbea.com

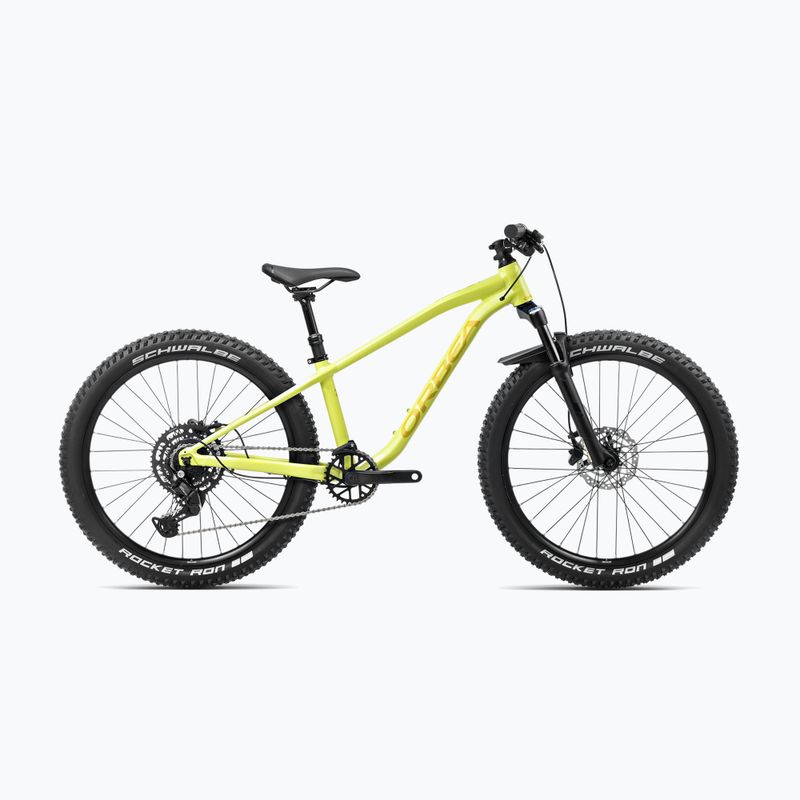

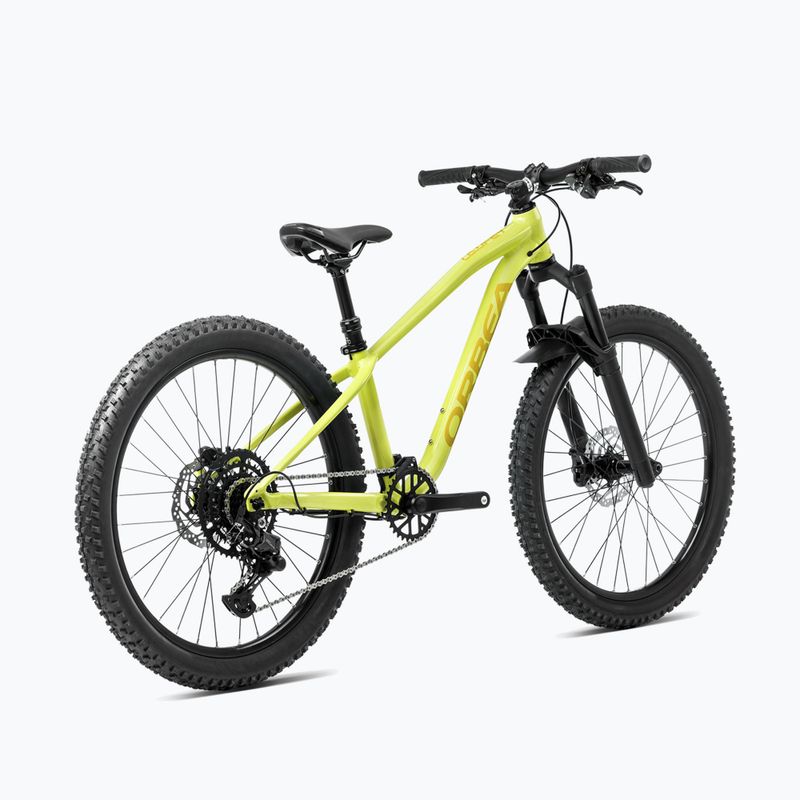

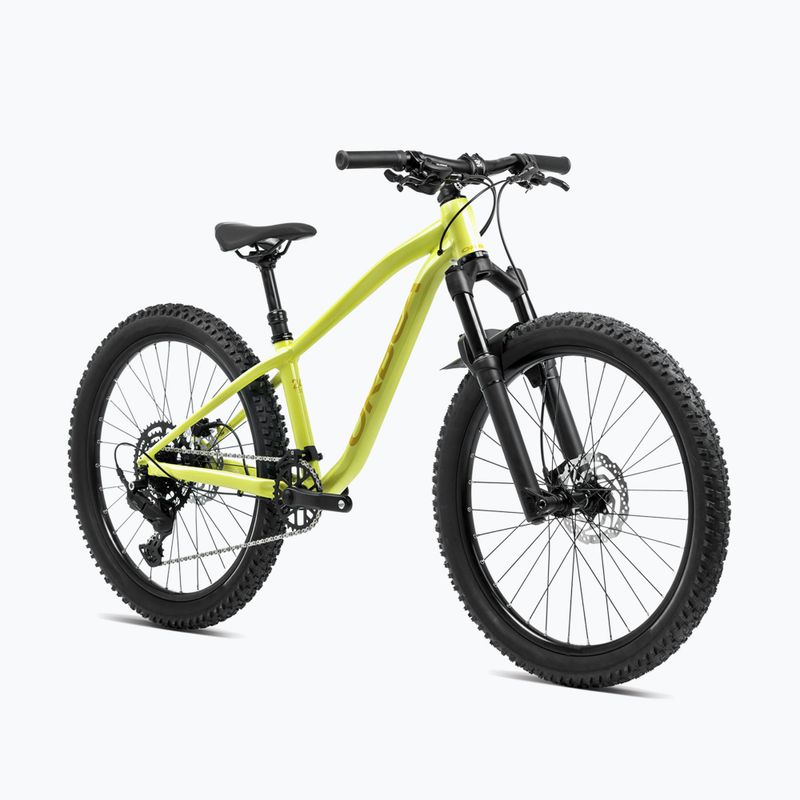

Orbea Laufey 24 H20 2024 spicy lime/yellow children's bike (R01124KM)

Orbea Laufey 24 H20 2024 is an extraordinary children's bike that harmoniously combines modern technologies and excellent craftsmanship, offering young cyclists unforgettable riding experiences. The lightweight and sturdy frame made of 6061 aluminum makes this bike an ideal choice for children looking to improve their skills on off-road trails. The frame design was developed with comfort and durability in mind, and the lifetime warranty attests to its reliability and longevity.

The Orbea Laufey 24 H20 2024 model features smart solutions that significantly enhance comfort and safety during use. The extra light crankset with 32 teeth and 152 mm length, along with the chain guard, ensures smooth and efficient pedaling. The bike is equipped with 24-inch wheels and an SR Suntour XCR LO Air suspension fork with 80 mm travel, allowing comfortable navigation over uneven terrain.

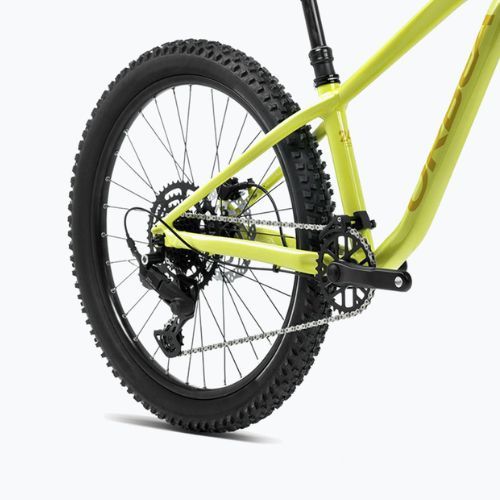

Orbea Laufey 24 H20 2024 is equipped with reliable Shimano components that guarantee precise gear shifting. The Shimano Cues U4000 GS Shadow rear derailleur and Shimano Cues SL-U4000 shifters enable smooth operation of the 9-speed drivetrain. Thanks to Shimano CS-LG300 cassettes with an 11-46T range, young riders can adjust their speed to various terrain conditions.

This bike also stands out with high-quality Clarks M2 hydraulic disc brakes with child-friendly levers, providing maximum safety and control over the bike. These brakes are reliable in all weather conditions, making the Orbea Laufey 24 H20 2024 an ideal choice for any trail adventure.

The bike comes with pedals, allowing immediate use after purchase. Additionally, the Selle Royal Vivo Junior saddle and OC Lock On grips provide comfort and stability during the ride. The OC Mountain Control MC21 dropper post allows easy adjustment of the saddle height to the young rider's needs, which is especially useful when changing riding conditions.

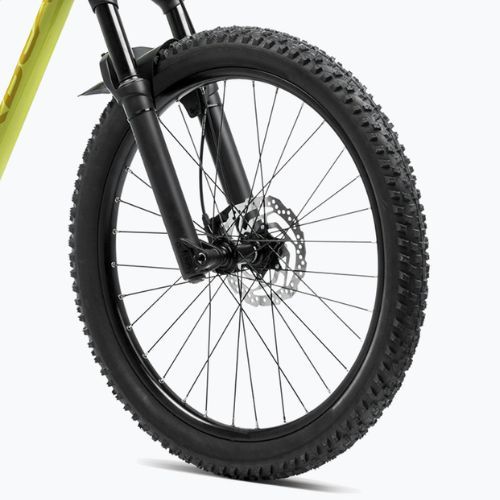

Orbea Laufey 24 H20 2024 is a bike designed for young cyclists who value comfort, safety, and versatility. The 24x2.35 Schwalbe Rocket Ron Perf Foldable tires provide excellent grip on various surfaces, allowing for confident and safe navigation even on the toughest trails. The Mach1 Klixx 23c wheels are tubeless-ready, further enhancing comfort and reliability during use.

Children's bicycle helmet Alpina Ximo Flash white flower
Size
45-49 cm
47-51 cm
49-54 cm
Choose an Option...

Choose an Option

  • 45-49 cm Notify me
  • 47-51 cm €49.99 €38.99
  • 49-54 cm €49.99 €38.99
Add to Wish List
Kellys children's bike bottle blue RANGIPO 022
Size
350 ml
Choose an Option...

Choose an Option

  • 350 ml €3.89
Add to Wish List
Feedback

There are no reviews yet, be the first!

Review this product

Orbea Laufey 24 H20 2024 spicy lime/yellow children's bike

Orbea Laufey 24 H20 2024 spicy lime/yellow children's bike

Overall rating
Please enter the order number under which you purchased this product at Sportano.

Orbea Laufey 24 H20 2024 spicy lime/yellow children's bike

No opinion

Bike assembly service available

Size OS Sizes table
Choose an Option...

Choose an Option

Sizes table

    Size OS"
    Size (inches) 24"
    Height (cm) 125-150
    A - Seat tube (mm) 300
    B - Horizontal pipe (mm) 515
    C - Steerer tube (mm) 100
    D - Rear triangle (mm) 395
    E - Support height (mm) 288
    F - Support lowering (mm) 35
    G - Wheelbase (mm) 1019
    H - Head angle 66
    I - Seat tube angle (°) 74
    J - Crossover (mm) 593
    K - Reach (mm) 366
    L - Stack (mm) 520
    M - Fork (mm) 445
