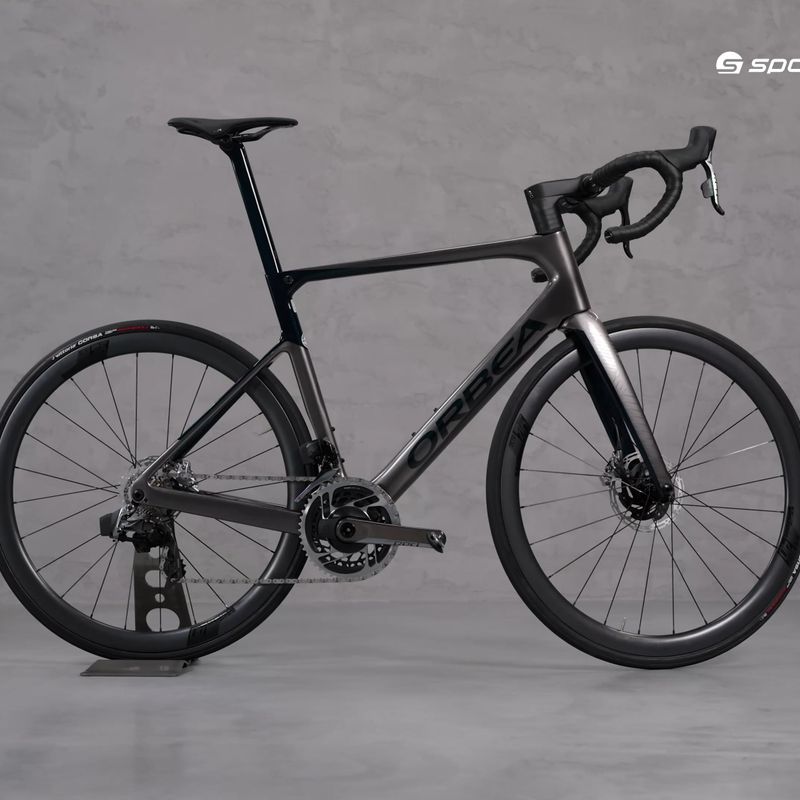

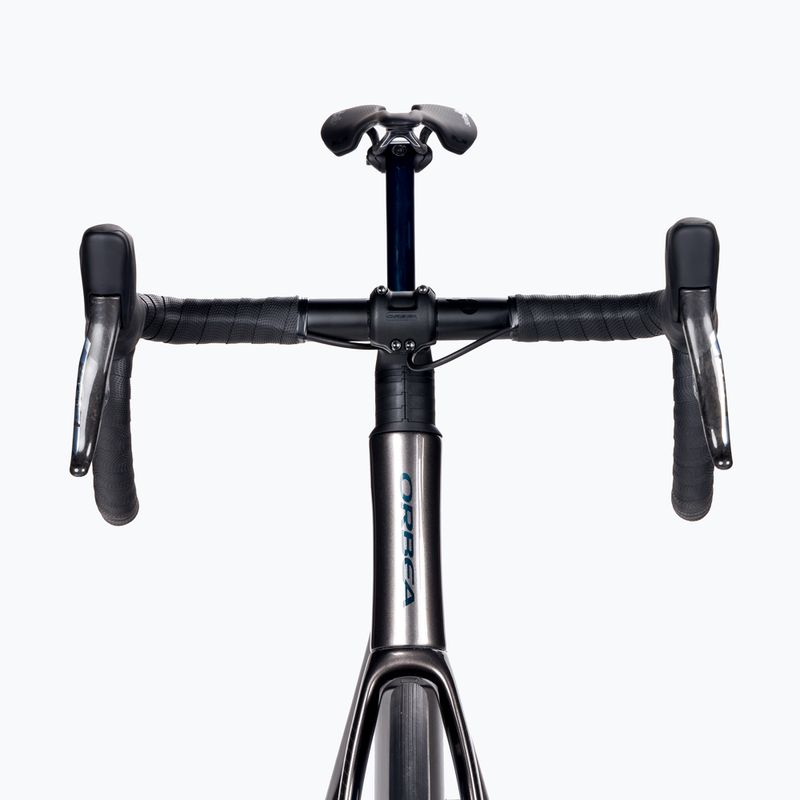

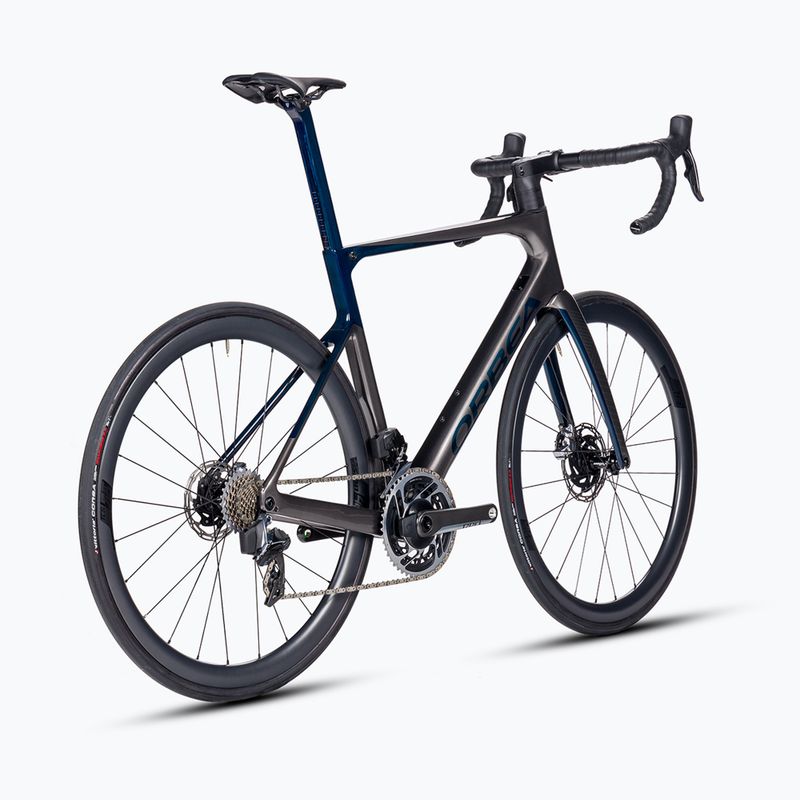

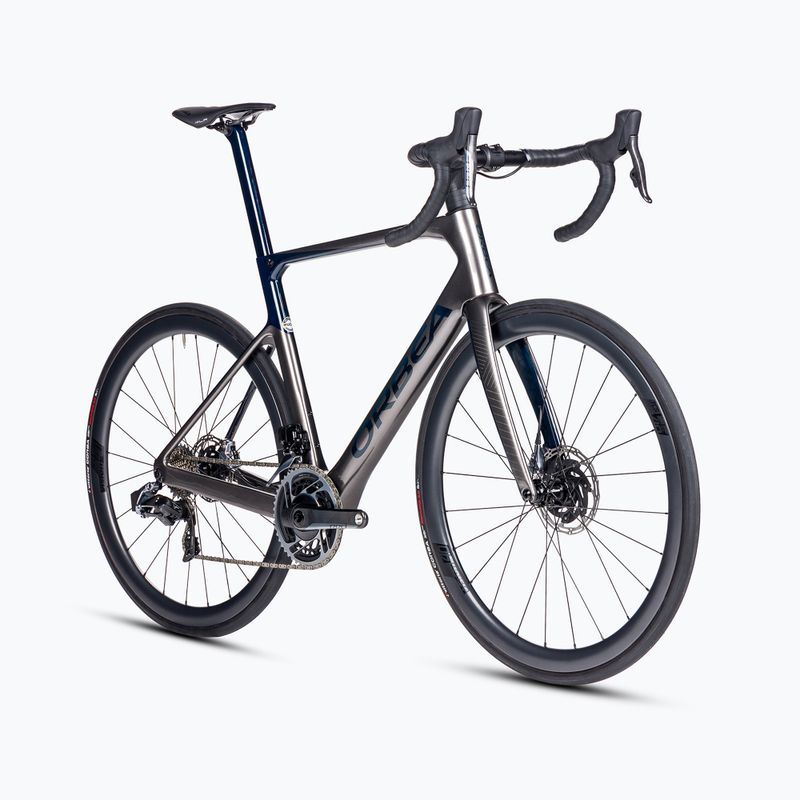

Orbea M11e LTD PWR graphite road bike M13155BR

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Model/product code M11e LTD PWR M13155BR

Leading colour Grey

Brand Orbea

Country of origin of the brand Spain

Gender Male, Woman

Season Year-round

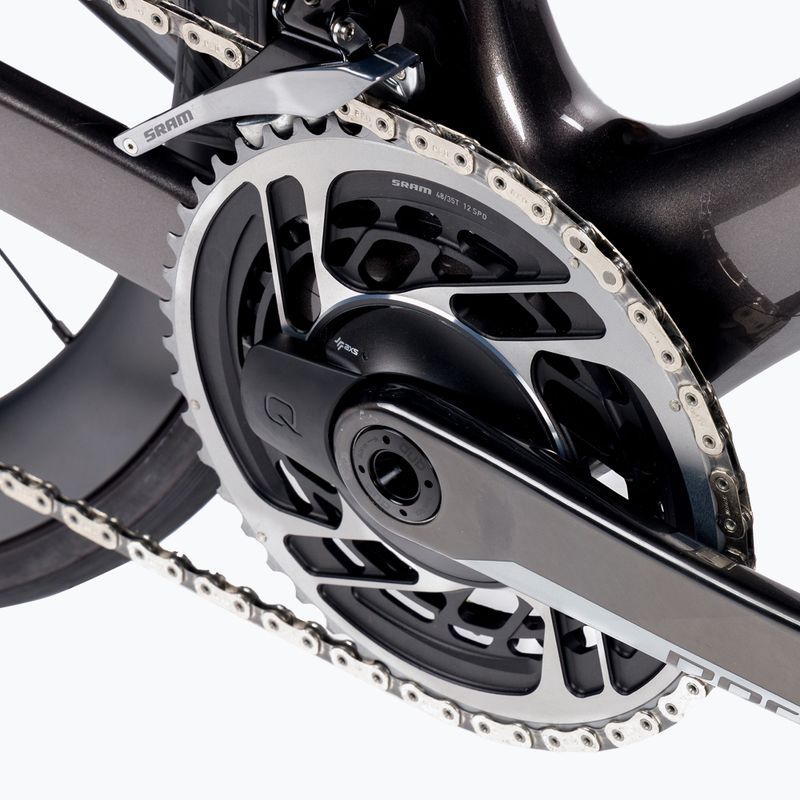

Crank mechanism SRAM Red 1 AXS Power Meter Dub 35x48t

Wheel size 28"

Derailleurs 2x12

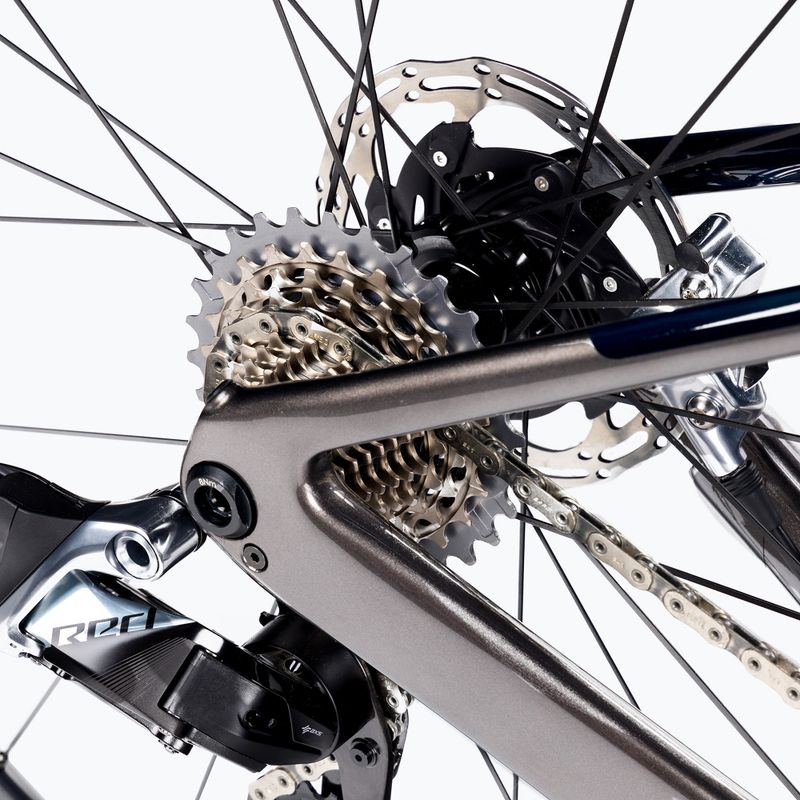

Cassette / Freewheel SRAM XG-1290 10-28t 12-Speed

Sport Bicycles

Rear derailleur (model) SRAM Red eTAP

Handles RED eTap AXS

Handlebar width 420 mm

Chain SRAM Red 12-speed

Type of derailleur Electronic

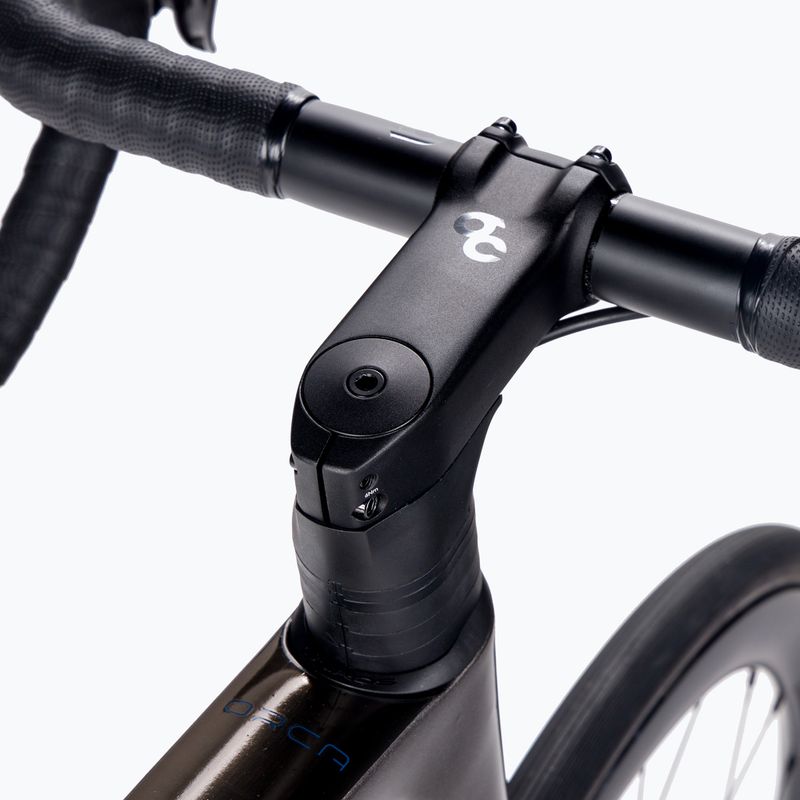

Handlebar support OC RP10 Road Performance ICR, -8º, IFC02 Computer mount interface

Bar Orbea Orca OMX, SB0/25, w/Micro tilt adjustment

Frame material Carbon

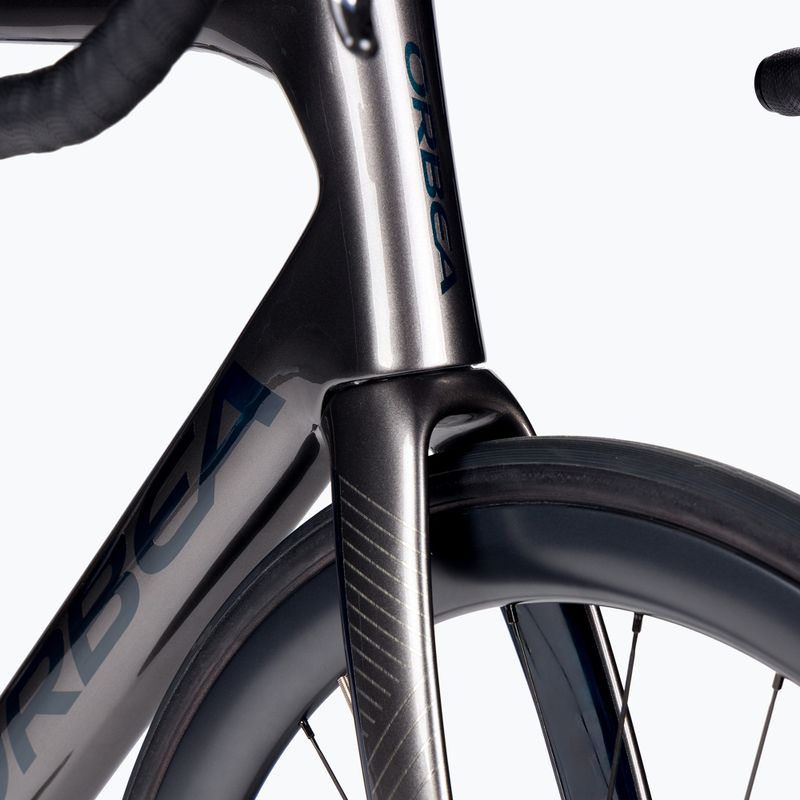

Fork Orbea Orca OMX ICR 2020, full carbon, 1-1/8"- 1.5" compatible with threaded headstock, 12x100mm through axle, M12x2 P1 thread,

Type of Product Endurance

Weight of bike (estimated) 7,6 kg

Brakes (model) RED eTap AXS

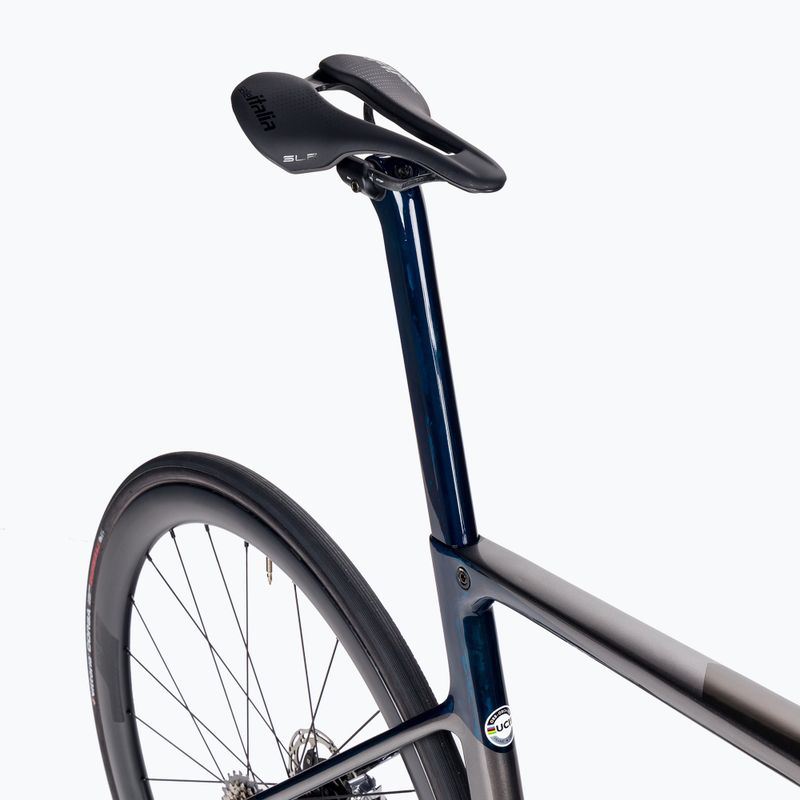

Saddle Selle Italia SLR Boost SuperFlow L Carbon Keramic Rail Ø7 x 9 mm

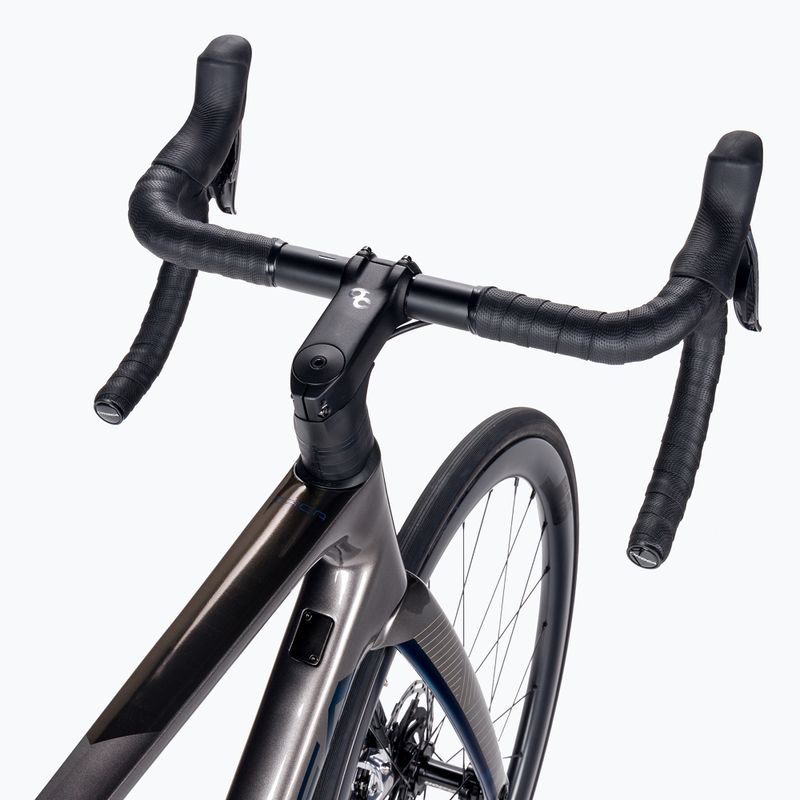

Steering wheel OC RP10 Road Performance Carbon, Reach 80, Drop 125, w/Di2 hole

Brake type Hydraulic discs

Number of gears 24

Front derailleur (model) SRAM Red eTAP

Tyres Vittoria Corsa Competition G2.0 TLR 700x25c Vittoria Corsa Competition G2.0 TLR 700x28c

Stan złożenia roweru Bike adjusted and pre-assembled

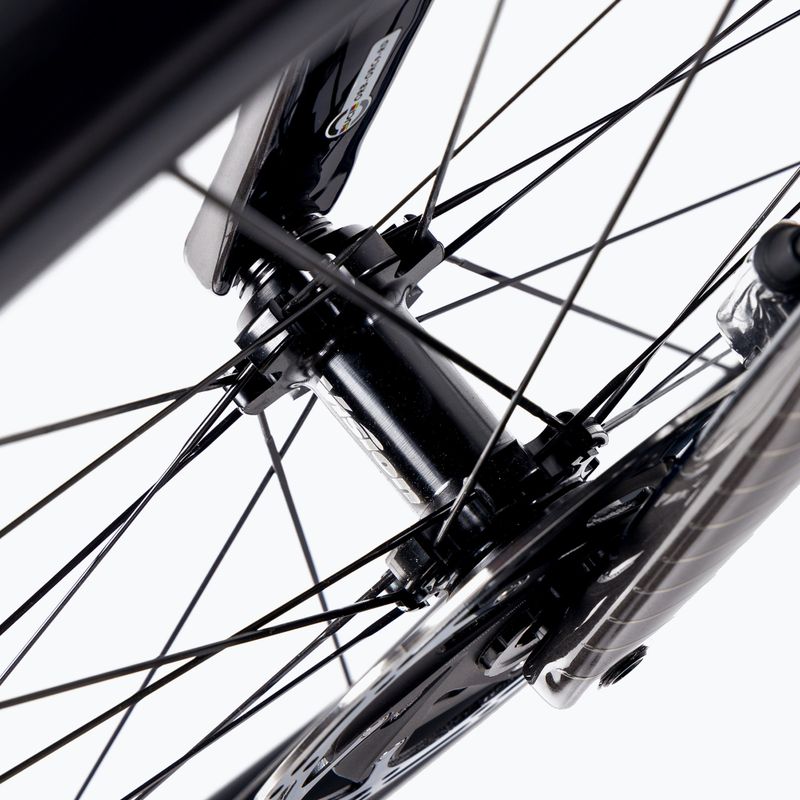

Wheels Vision 40 SC Disc Carbon TLR CL

Rudders Acros Alloy 1-1/2" Internal Cable Routing, Stainless Steel Bearing

Orbea M11e LTD PWR graphite road bike M13155BR 2

Orbea M11e LTD PWR graphite road bike M13155BR

Sizes

Size	49	51	53	55	57
Height (cm)	160-166	167-172	173-179	180-185	186-191
A - Seat tube (mm)	460	480	500	520	540
B - Horizontal pipe (mm)	523,24	535,84	548,51	560,43	576,13
C - Steerer tube (deg)	113,2	129,6	147,9	168	186,2
D - Rear triangle (mm)	408	408	408	408	408
E - Support height (mm)	267	267	269	269	269
F - Support lowering (mm)	72	72	70	70	70
G - Wheelbase (mm)	976	980	981,17	991,3	1001,86
H - Head angle	71,5	72,2	72,8	73	73,2
I - Saddle angle	74	73,7	73,5	73,5	73,2
J - Crossover (mm)	743	761	782	802	820
K - Reach (mm)	375,56	380	385	391,02	398
L - Stack (mm)	515	533	552	571,92	590
M - Fork (mm)	370	370	370	370	370

Product description

Advantages

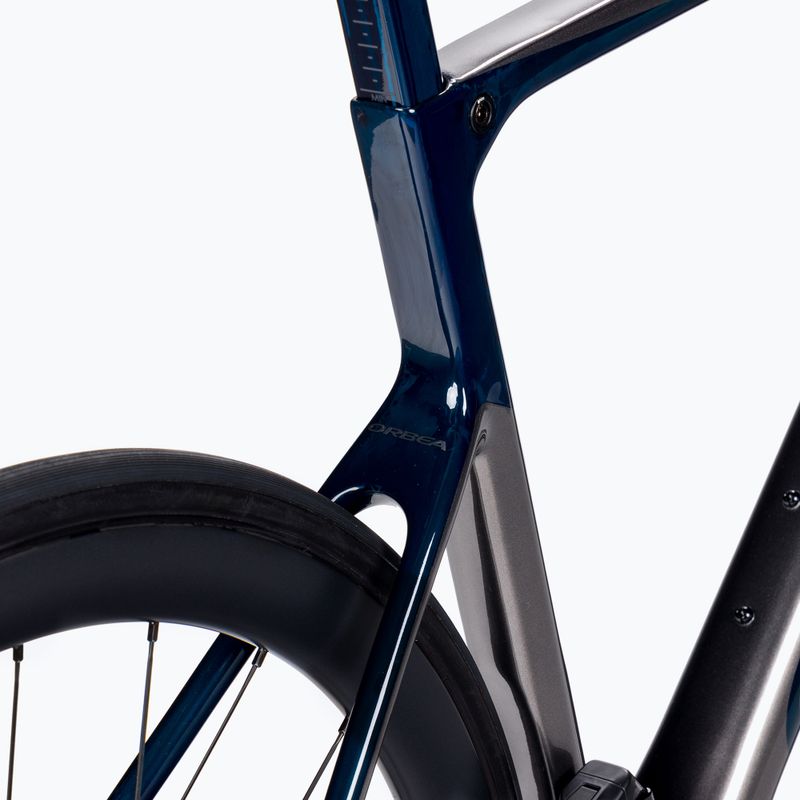

Carbon frame

The frame of this road bike has been made from extremely lightweight carbon, so carrying the bike is not a problem. Carbon is distinguished by the fact that it is very effective in reducing the force of vibrations generated when riding over rough terrain.

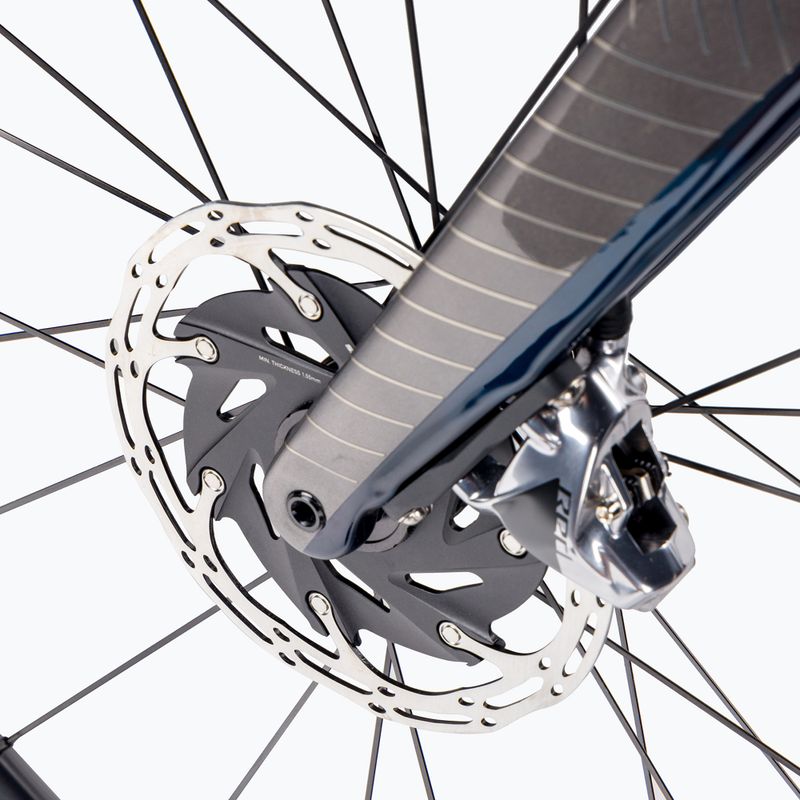

Hydraulic disc brakes

This road bike is equipped with hydraulic disc brakes, which have an extremely low failure rate, ensuring trouble-free use, even during frequent use. In addition, they are distinguished by their greater braking power and modulation.

28" wheels

The use of 28-inch wheels on this model has made the bike faster to reach higher speeds and much easier to maintain. This wheel size allows the bike to negotiate obstacles comfortably and provides better stability at higher speeds.
