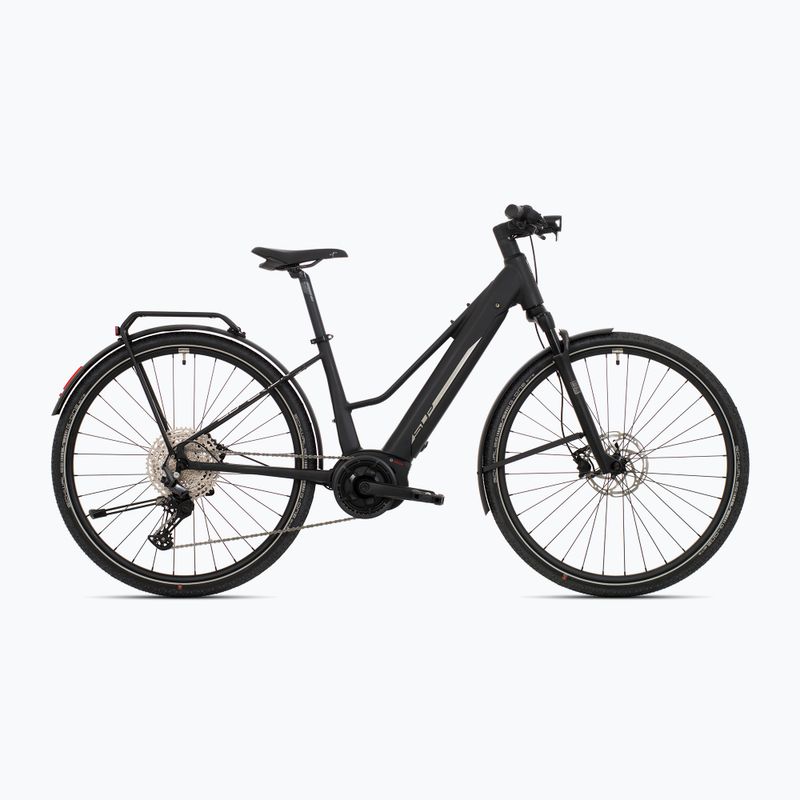

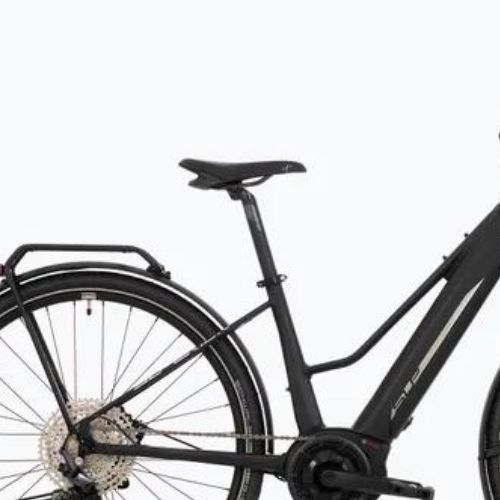

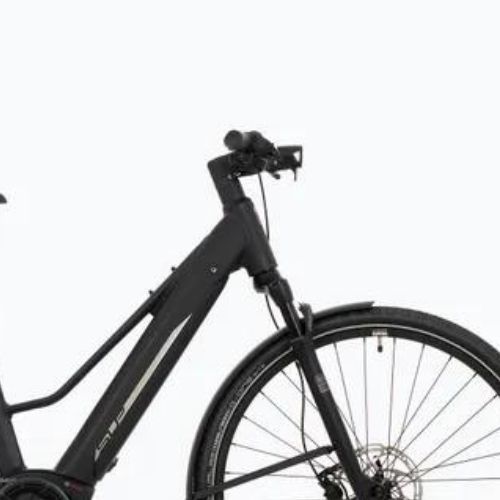

Superior eXR 6090 BL Touring 36V 625Wh matte black/chrome silver electric bike

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.

Model/product code eXR 6090 BL Touring 801.2022.78014

Leading colour Black

Brand Superior

Country of origin of the brand European Union

Gender Male, Woman

Season Year-round

Engine location Central

Engine power 250 W

Crank mechanism ONE1 EC33-BH3-F9-BNI-L/R, 38T

Wheel size 28"

Frame Alu 6061 T6, Comfort Geometry, Smooth Welding, Bosch system ready, integrated battery, Inner Cable Routing

Sport Bicycles

Derailleurs 1x12

Cassette / Freewheel SHIMANO CS-M6100-12, 10-51T

Rear derailleur (model) SHIMANO DEORE RD-M6100 Shadow Plus

Handles SHIMANO DEORE SL-M6100-IR RapidFire Plus, 12-speed

Depreciation Front

Brakes (model) SHIMANO BL-M4100/BR-MT410, SHIMANO BL-M4100/BR-MT420

Purpose Cross/Fitness

Chain SHIMANO CN-M6100

Handlebar support ONE1 TDS-661 Alloy, 31.8mm, 0°

Bar ONE1 Sport Alloy, SP C207, 30.9mm

Tyres Schwalbe G-One Bite, 28x2.00", reflective tape

Frame material Aluminium

Fork RockShox Paragon Gold RL, Tapered, SoloAir, 15x110mm axle, 65mm travel

Charger Bosch Compact Charger

Pedals included Yes

Engine model BOSCH PerformanceLine Cruise

Saddle Selle Royal LIFT

Steering wheel ONE1 Alloy, MTB AL-320BT, 10° backsweep, 20mm rise, 720mm, 31.8mm

Brake type Hydraulic discs

Number of gears 12

Wheels Stars J26S, 32H

Battery capacity 625 Wh

Folding condition of the bike Bike adjusted and pre-assembled

Hubs SHIMANO HB-TX505, 32H, CENTER LOCK, QR Type, SHIMANO FH-TX505-8, 32H, CENTER LOCK, M10x135mm, QR Type

Maximum torque 65 Nm

Rudders ACROS AZX-1051, ICR, ZS56/28.6 | ZS56/40; BlockLock 120°

Superior eXR 6090 BL Touring 36V 625Wh matte black/chrome silver electric bike 2

Sizes table

Below you will find information that will help you choose the right size when purchasing an eXR 6090 BLS Touring electric bicycle from Superior.

Size	S/16,5"
Height (cm)	160-170
A - Seat tube (mm)	406
B - Horizontal pipe (mm)	570
C - Kąt siodełka (°)	73,5
D - Head angle (°)	67
F - Wheel base (mm)	1169
G - Rura sterowa (mm)	120
R - Reach (mm)	390
S - Stack (mm)	606
BBD - Support lowering (mm)	60

Product description

Advantages

Front cushioning

The cushioning makes cycling over uneven ground much more pleasant and comfortable. This model is equipped with front suspension, which ensures safety and absorbs the force when the front wheel hits an obstacle.

Aluminium frame

The use of an aluminium frame in this model of bicycle makes it extremely light and strong, so that moving the bicycle from place to place is not a problem. In addition, this material is characterised by its resistance to deformation.

Hydraulic disc brakes

The given model of the bike is equipped with hydraulic disc brakes. This type has a very low failure rate, ensuring that the brakes will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.

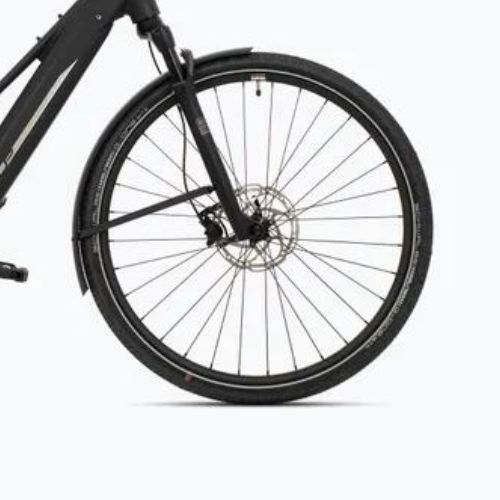

28" wheels

The use of 28-inch wheels on this model has made the bike faster to reach higher speeds and much easier to maintain. This wheel size allows the bike to negotiate obstacles comfortably and provides better stability at higher speeds.

Drive 1x12

The 1x12 derailleurs used on this e-bike model guarantee smooth gradation and allow effortless gear changes. The large gear range allows you to adapt the gear to the current road conditions.
