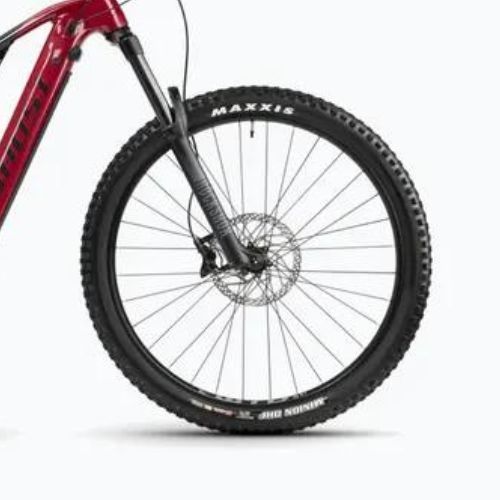

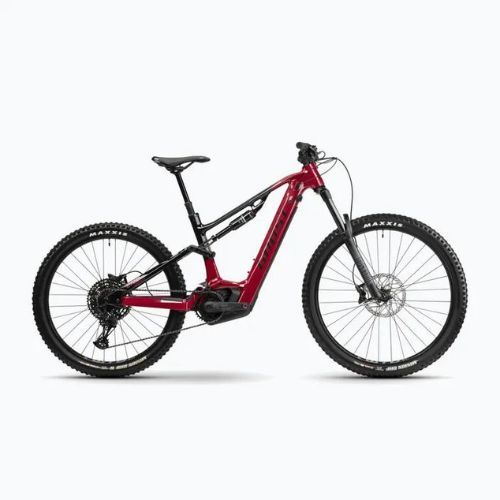

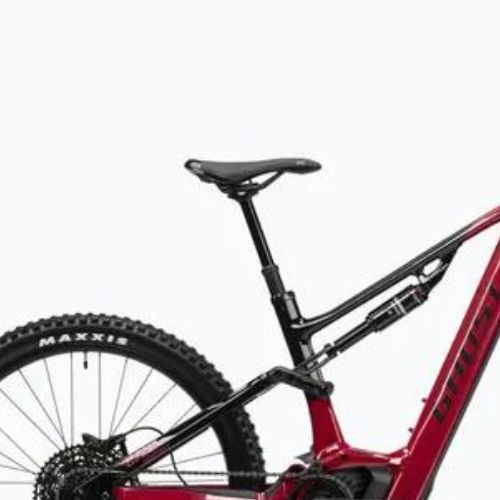

Electric bike GHOST E-ASX 160 Universal 625Wh met. rusted red/black glossy/matt (31AS1022)

Frame

Frame E-ASX AL (29/27.5+)

Frame material Aluminium

Components

Steering wheel Ground Fiftyone Dia. 31.8 mm 760/15 (S) 780/25 (M-XL)

Handlebar support Ground Fiftyone Dia. 31.8 mm

Grips WTB Wafel

Depreciation Full

Rudders Acros AZX-205

Fork Rock Shox 35 Silver TK Solo Air 160 mm

Damper SR Suntour Raidon R 160 mm

Saddle Selle Royal Vivo

Bar Ghost Alpha 1 34.9 mm 125 (S) 150 (M) 170 (L/XL)

Drive

Derailleurs 1x12

Number of gears 12

Rear derailleur (model) SRAM SX Eagle 12-S

Handles SRAM SX Eagle Single Click

Crank mechanism e*thirteen e*spec Plus 34T

Cassette / Freewheel SRAM PG-1210 11-50

Chain SRAM SX Eagle

Brakes

Brakes (model) Shimano BR-MT420 / 410 203 mm Disc

Brake type Hydraulic discs

Brake discs Shimano SM-RT30/RT-EM300 203 mm

Wheels

Wheel size 29", 27,5"

Wheels WTB ST i30

Tyres Maxxis Minion DHF 3C MaxxTerra Exo+ 2.5 29", Maxxis Minion DHR II 3C MaxxTerra Exo+ 2.6 27.5"

Hubs Shimano FH-MT400-B 12x148 mm, Shimano HB-MT400-B 15x110 mm

Additional information

Pedals included Yes

Folding condition of the bike Bike adjusted and pre-assembled

Other data

Sport Bicycles

Brand GHOST

Leading colour Red

Season Year-round

Model/product code E-ASX 160 Essential 31AS1022

Purpose MTB

Gender Male, Woman

Country of origin of the brand Germany

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.

Model colour 2000090971

Engine model BOSCH Performance Line CX

Engine location Central

Engine power 250 W

Battery capacity 625 Wh

Charger Bosch Charger 4 Ah

Below you will find information that will help you choose the right size when buying an E-ASX electric bike from GHOST.

Size	S	M	L	XL
Height (cm)	163-173	171-181	179-188	187-201
Seattube (mm)	390	430	470	510
Headtube (mm)	587	609	633	663
Seattube (mm)	100	110	130	150
Chainstay (mm)	460	460	460	460
BB Drop (mm)	30	30	30	30
Wheelbase (mm)	1230	1248	1276	1310
	64,5	65	65	65
Headtube angle	76,5	76,5	76,5	76,5
Standover (mm)	735	749	748	757
Reach (mm)	435	455	475	500
Stack (mm)	631	641	659	678

Advantages

Aluminium frame

The use of an aluminium frame in this model of bicycle makes it extremely light and strong, so that moving the bicycle from place to place is not a problem. In addition, this material is characterised by its resistance to deformation.

Hydraulic disc brakes

The given model of the bike is equipped with hydraulic disc brakes. This type has a very low failure rate, ensuring that the brakes will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.

Full shock absorption

Full suspension, i.e. both the front and rear wheels, allows you to negotiate obstacles in difficult terrain more comfortably. A bike with full suspension provides more grip and efficiency.

Drive 1x12

The 1x12 derailleurs used on this e-bike model guarantee smooth gradation and allow effortless gear changes. The large gear range allows you to adapt the gear to the current road conditions.

27.5" wheels

The 27.5-inch wheels that this bike model is equipped with are characterised by the fact that they are easy to accelerate and the bike is more agile. In addition, riding on wheels of this size allows for a dynamic ride and provides comfort on difficult surfaces.

29" wheels

The use of 29’ wheels allows for greater and better tyre contact with the ground, making it much easier to overcome bumps when riding over rough terrain. This size guarantees good stability when riding at higher speeds.
