Orbea Oiz M30 2024 is a mountain bike that combines lightness, stiffness, and advanced geometry, offering excellent performance on XC trails. Thanks to state-of-the-art components and thoughtful design, the Oiz M30 is the perfect choice for anyone seeking speed, control, and unforgettable riding experiences.

Basic data

Brand Orbea
Country of origin of the brand Spain
Sport Bicycles
Gender Male, Woman
Season Year-round
Leading colour Black
Model/product code Oiz M30 R23505NV
Code 2000090024

Frame

Frame Orbea Oiz Carbon OMR, Fiberlink, Boost, BSA, SIC, UFO, I-line shock
Frame material Carbon fibre

Components

Steering wheel OC Mountain Performance MP30, Width 760
Handlebar support OC Mountain Performance MP21, -6º
Depreciation Full
Rudders Alloy 1-1/2", Black Oxidated Bearing
Fork Fox 34 Float SC Performance 120 Grip Remote Push to Lock QR15x110
Damper Fox Float SL Performance 120mm Remote Push-lock Evol custom tune190x45mm
Saddle Selle Italia Model X FecAlloy Rail 145x248mm
Bar OC Mountain Control MC21, 31.6mm, Dropper

Drive

Derailleurs 1x12
Number of gears 12
Rear derailleur (model) Shimano SLX M7100 SGS Shadow Plus
Handles Shimano Deore M6100 I-Spec EV
Crank mechanism Shimano MT511 32t
Cassette / Freewheel Shimano CS-M6100 10-51t 12-Speed
Chain Shimano M6100

Brakes

Brakes (model) Shimano M6100 Hydraulic Disc
Brake type Hydraulic discs

Wheels

Wheel size 29"
Wheels Alloy, Tubeless, 25c, 32H
Tyres Maxxis Rekon Race 2.40" WT 120 TPI Exo TLR
Tubeless ready wheels Yes
Tubeless ready tyres Yes

Warnings and producer's data

Warnings The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.
Producer Orbea S. Coop. | Polígono Industrial Goitondo, s/n, 48260 Mallabia, Bizkaia, Hiszpania | info@orbea.com

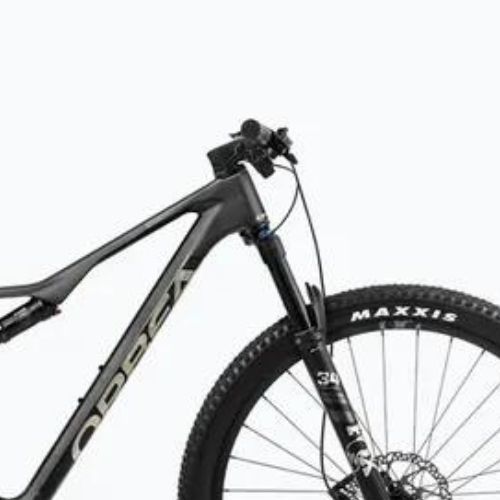

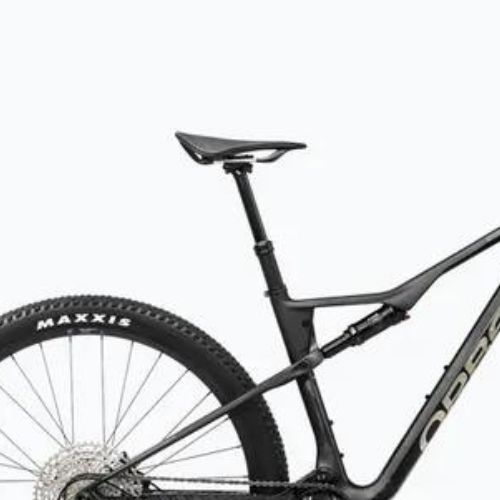

Orbea Oiz M30 2024 powder black/black mountain bike (R23505NV)

Take full control and accept no compromises. Orbea Oiz M30 2024 is an XC racing machine that combines modern geometry with intelligent suspension, providing extra fun on every ride without sacrificing weight or performance. It is the fastest XC bike to leave the Orbea factory in over 180 years.

The frame is made of high-quality OMR carbon, ensuring exceptional lightness and durability. The design incorporates technologies such as Fiberlink, Boost, BSA, SIC, UFO, and I-line shock, allowing for optimization of every frame element for XC racing. Thanks to Fiberlink, the frame maintains proper stiffness, and Boost increases the width of the rear axle, improving stability and control. BSA means standard threaded bottom bracket shells, which facilitates maintenance, and the SIC (Smart Internal Cable) system provides aesthetic and protected cable routing inside the frame.

Orbea Oiz Carbon OMR is one of the lightest XC frames on the market. Thanks to the special PowerSpine structure, stiffness is added in the most stressed areas while removing excess material elsewhere. Modern XC racing is more demanding than ever, making XC bikes need to offer greater control and riding enjoyment on descents. The No Compromise geometry is based on rider feedback and testing to create the most fun XC bike.

Fox 34 Float SC Performance fork with 120 mm travel and Push to Lock remote lockout system offers excellent vibration damping and precise handling. It is designed to meet the demands of intense XC trails, providing maximum performance and comfort.

Fox Float SL Performance damper with 120 mm travel, specially tuned for the Oiz model, guarantees smooth riding and excellent damping in all conditions. Thanks to the Remote Push-lock system, it can be easily locked from the handlebar, increasing pedaling efficiency on flat sections.

OC Mountain Control MC21 dropper seatpost with 31.6 mm diameter provides comfort and the ability to quickly adjust saddle height while riding. This solution enhances comfort and pedaling efficiency, allowing for better performance on the trail.

Maxxis Rekon Race tires with a width of 2.40" and Exo TLR technology provide excellent grip and durability. These tires are ideal for fast riding on various surfaces, while offering high puncture resistance, which increases their durability and longevity.

Advantages

Carbon frame
When designing this bike, the focus was on selecting the right materials to ensure the highest quality. Therefore, the frame is made of carbon, which combines lightness and resilience in addition to effectively damping vibrations.
Hydraulic disc brakes
This mountain bike model uses hydraulic disc brakes, which have a very low failure rate, so they will be trouble-free even during frequent use. The undoubted advantage is greater braking power and modulation.
Tubeless ready tyres
The use of TLR (Tubeless Ready) technology has made it possible to use lower pressures and makes the tyres resistant to punctures. What's more, the system rules out the problem of ‘Snake Bite’, i.e. puncturing the inner tube by pinching it against the rim.
Full shock absorption
Allows easier traversing of off-road obstacles. Front and rear shock absorbers provide maximum wheel traction control and a balanced ride on the ground. The full suspension bike is very comfortable and soft to ride.
Drive 1x12
This bike uses 1x12 derailleurs, which provide smooth gradation and allow effortless gear changes. The large range of gear ratios allows you to adapt the gear to your current needs.
29" wheels
The use of 29 wheels has made it possible to provide more and better tyre contact with the ground, which makes it much easier to overcome bumps when riding over difficult terrain. This size guarantees good stability when riding at higher speeds.
Feedback

There are no reviews yet, be the first!

Review this product

Orbea Oiz M30 2024 powder black/black mountain bike

Orbea Oiz M30 2024 powder black/black mountain bike

Overall rating
Please enter the order number under which you purchased this product at Sportano.

Orbea Oiz M30 2024 powder black/black mountain bike

No opinion

Bike assembly service available

Size Sizes table
Choose an Option...

Choose an Option

Sizes table

    Below you will find information that will help you choose the right size when purchasing the Oiz M30 bike by Orbea.

    Size M L
    Height (cm) 165-180 178-190
    A - Seat tube (mm) 432 460
    B - Horizontal pipe (mm) 598 623
    C - Steerer tube (mm) 90 100
    D - Rear triangle (mm) 432 432
    E - Support height (mm) 333 333
    F - Support lowering (mm) 42 42
    G - Wheelbase (mm) 1163 1189
    H - Head angle 67 67
    I - Seat tube angle (°) 76,5 76,5
    J - Crossover (mm) 741 741
    K - Reach (mm) 450 472
    L - Stack (mm) 596 606
    M - Fork (mm) 531 531
