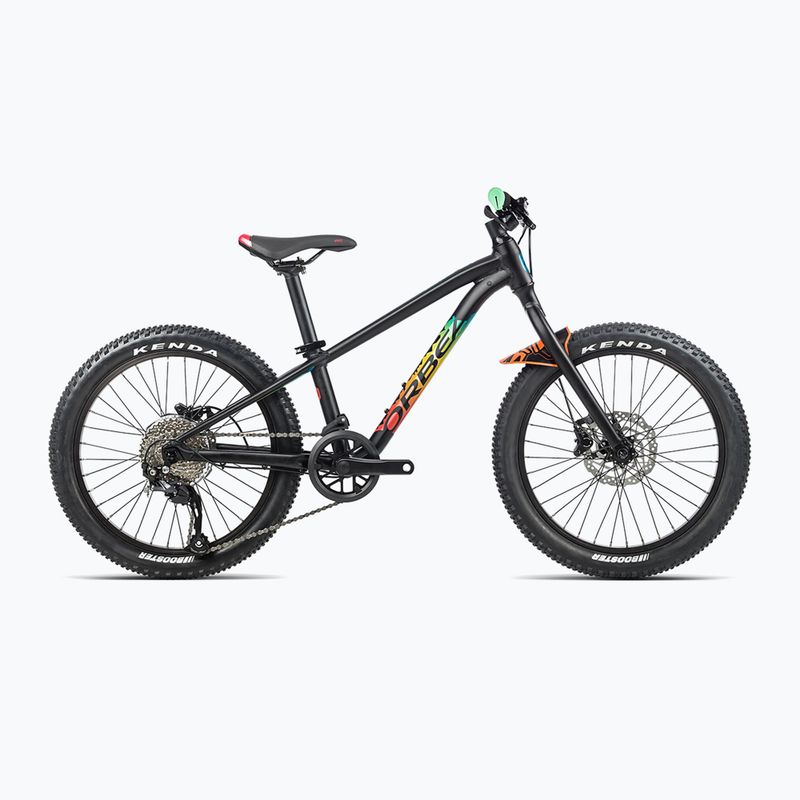

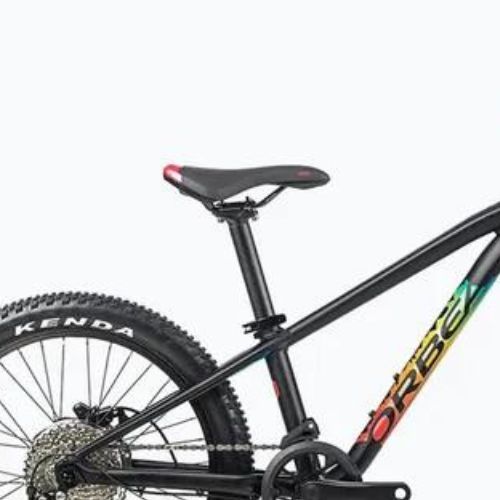

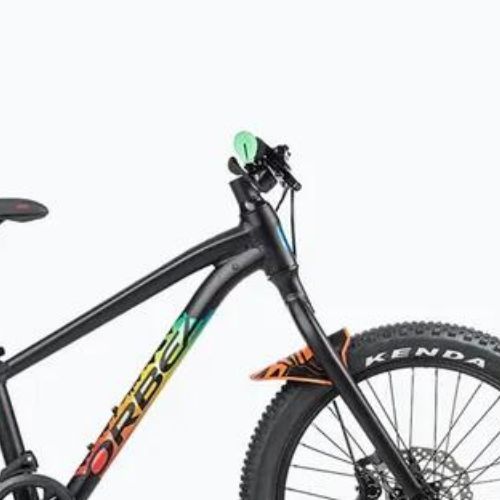

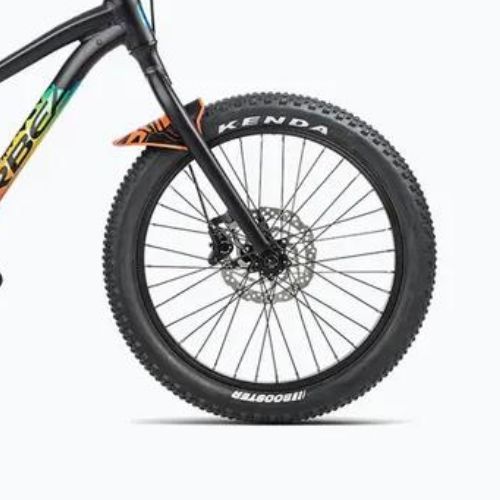

Orbea children's bike Laufey 20 H30 2023 black rainbow

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Model/product code Laufey 20 H30 N01220I8

Leading colour Black

Brand Orbea

Country of origin of the brand Spain

Gender Boy, Girl

Season Year-round

Crank mechanism Extra light 32t, 127mm, w/Chainguard

Wheel size 20"

Frame Orbea Laufey 20 6061 Aluminum 2021, 135x9 QR, Post Mount Disc Mount, 31,6 Seat Post, Internal Cable Routing, Removable hanger

Derailleurs 1x9

Sport Bicycles

Cassette / Freewheel Sun Race CSM989 11-36t 9-Speed

Rear derailleur (model) Shimano Altus M2000 SGS Shadow

Handles Shimano SL-M2010

Depreciation No

Brakes (model) Shimano MT410 Hydraulic Disc

Chain KMC X9

Bar Digit Alloy 31,6x250mm Offset 0

Pedals included Yes

Tyres Kenda Booster K1277 20x2.20" 30TPI

Frame material Aluminium

Fork Orbea Laufey 20 6061 Aluminum 2021, 100x9 QR, Post Mount Disc Mount, Mini Fender ready

Mudguards Orbea Custom fork

Saddle Selle Royal Vivo Junior

Steering wheel Orbea Alu integrated cockpit 540mm

Brake type Hydraulic discs

Number of gears 9

Wheels Orbea Alloy 20"

Folding condition of the bike Bike adjusted and pre-assembled

Side wheels No

Rudders VP-Z104PD 1-1/8" Semi-Cartridge

Orbea children's bike Laufey 20 H30 2023 black rainbow 2

Sizes table

Below you will find information that will help you choose the right size when buying a child's Laufey 20 bike from Orbea.

Size	OS
Height (cm)	110-135
A - Seat tube (mm)	257
B - Horizontal pipe (mm)	450
C - Steerer tube (mm)	90
D - Rear triangle (mm)	350
E - Support height (mm)	248
F - Support lowering (mm)	23
G - Wheelbase (mm)	904
H - Head angle	66
I - Seat tube angle (°)	74
J - Crossover (mm)	505
K - Reach (mm)	322
L - Stack (mm)	447
M - Fork (mm)	388

Product description

Advantages

Aluminium frame

The junior bike has been designed with attention to every element. Its frame is made of durable aluminium, which stands out for its low weight. In addition, this material is characterised by its strength and resistance to deformation.

Hydraulic disc brakes

This bike uses hydraulic disc brakes, which have a very low failure rate, so they will last a long time. This type provides high power and braking modulation no matter what the road conditions are.
