Marin Nicasio 2 satin blue/green/orange gravel bike (A-2098D-F1-58)

Frame

Frame Series 2 CrMo, Beyond Road Geometry, ThruAxle, Disc Brake, Integrated Headset, Fender and Rack Mounts

Frame material Aluminium

Components

Steering wheel Marin Butted Alloy, Compact 12º Flared Drop, Flat Top

Handlebar material Aluminium

Handlebar support Marin 3D Forged Alloy

Handlebar stem material Aluminium

Grips Marin Comfort Tape

Depreciation No

Rudders FSA No. 42/ACB

Fork Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

Fork material Carbon fibre

Saddle Marin Beyond Road Concept

Bar Marin Alloy, 27.2mm

Frame material Aluminium

Drive

Type of derailleur Mechanical

Derailleurs 2x10

Number of gears 20

Front derailleur (model) Shimano Tiagra

Rear derailleur (model) Shimano Tiagra

Handles Shimano Tiagra

Crank mechanism FSA Omega MegaExo, 50/34T

Chain KMC X10

Brakes

Brakes (model) Shimano BR-4770 Hydraulic

Brake type Hydraulic discs

Wheels

Wheel size 28"

Wheels Marin Aluminum Double Wall, 19mm Inner, Disc Specifc

Tyres WTB, Riddler Comp, 700Cx37, Folding Bead, Tubeless Ready

Hubs Forged Aluminum Alloy, Disc, 32H

spokes 14g Black Stainless Steel

Tubeless ready tyres Yes

Additional information

Pedals included Yes

Folding condition of the bike Bike adjusted and pre-assembled

Warnings and producer's data

Producer Petaluma, CA 94954, USA | [email protected]

Other data

Sport Bicycles

Brand Marin

Leading colour Navy blue

Season Year-round

Model/product code Nicasio 2 A-2098D-F1-58

Gender Male, Woman

Country of origin of the brand USA

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Code 2000074247

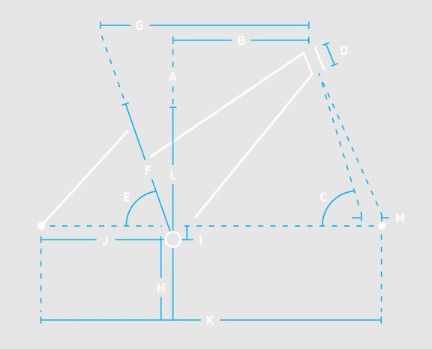

Size	XS	L	XL	XXL
Height (cm)	152-160	175-183	183-188	188-193
A - STACK	550	691,5	610,4	620
B - REACH	362,5	384,2	398,4	404,5
	70,5	71,5	71,5	71,5
D - Steering tube (mm)	130	170	190	200
E - Kąt siodełka (°)	74,5	74	74	74
	470	530	550	570
	515	565	585	600
	269	269	269	269
	72	72	72	72
	420	420	420	420
	998,5	1024,5	1045	1054,4
	721,09	777,05	796,2	812,46
	50	50	50	50

Advantages

Aluminium frame

This bike model has been made with the right materials to ensure maximum comfort. Durable aluminium was used for the frame, which stands out for its lightness. In addition, this material is characterised by a high strength index and resistance to bending.

Hydraulic disc brakes

This model of bike uses a reliable type of brake, the hydraulic disc. This type provides high braking power and modulation regardless of road conditions. In addition, the brakes have a low failure rate.

28" wheels

The 28-inch wheels are characterised by prolonged wear and allow faster speeds, which are far easier to maintain. Compared to smaller sizes, these wheels provide better stability at higher speeds.

Tubeless ready tyres

The tubeless ready system ensures that the tyre is puncture-proof, reduces rolling resistance and allows the use of lower pressures. In addition, it also eliminates the problem of ‘Snake Bite’, i.e. punctures in the inner tube by pinching the rim.

Carbon fork

The material used to make this fork is characterised by extreme lightness. The carbon fork is characterised by its high ability to absorb the power generated when riding over rough terrain and combines strength and low weight.
