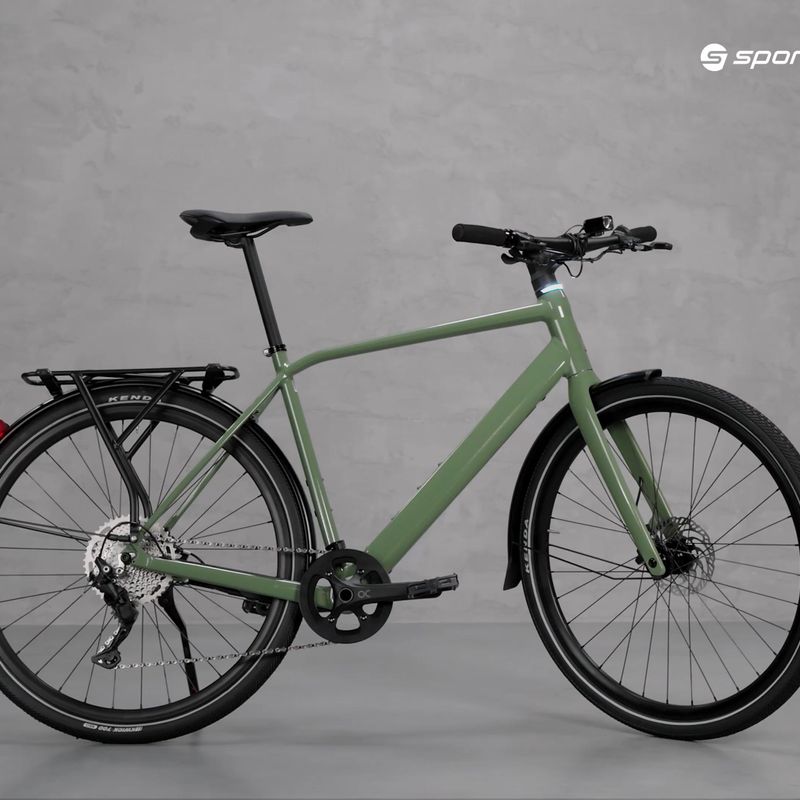

Men's electric bike Orbea Vibe H30 EQ green M30753YI (M30753YI)

Frame

Frame Orbea Vibe Top Bar Hydro 6061 Hydroform Aluminum 2021, forged bb, 135x9 qr, 700x45 maximun tire, 41x86.5 pressfit BB

Frame material Aluminium

Components

Steering wheel Alloy 31.8mm 12mm Rise 700mm

Handlebar support OC1 31.8mm interface -6º

Depreciation No

Rudders Acros Alloy 1-1/2" Internal Cable Routing

Fork Orbea carbon fork 2021, aluminium steerer, 1-1/8" head tube

Fork material Carbon fibre

Saddle Selle Royal Lift 1215 URN 278x145mm

Bar Alloy 27.2 Offset 20

Drive

Derailleurs 1x10

Number of gears 10

Rear derailleur (model) Shimano Deore M5120 SGS Shadow Plus

Handles Shimano Deore M4100

Crank mechanism OC 42t, w/Chainguard

Cassette / Freewheel Shimano CS-M4100 11-46t 10-Speed

Chain KMC X10

Brakes

Brakes (model) Magura MT30 Hydraulic Disc Easy Route Connection

Brake type Hydraulic discs

Wheels

Wheel size 28"

Wheels Ready GR

Tyres Kenda K1052 700x45C Reflective type+puncture protection

Hubs Orbea Thru Axle 12x100mm M12x2 P1 Hollow - front hub

Additional information

Support Yes

Bell Yes

Lighting Yes

Mudguards Yes

Luggage carrier Yes

Folding condition of the bike Bike adjusted and pre-assembled

Other data

Sport Bicycles

Brand Orbea

Leading colour Green

Season Spring/Summer

Model/product code el.Vibe H30 EQ M30753YI

Purpose Cross/Fitness

Gender Male

Country of origin of the brand Spain

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only., The maximum range of an e-bike is a conventional value, depending on factors such as weather, terrain and the weight of the user.

Model colour 2000007987

Engine model Mahle motor hub X35 Plus 25kmh ( brushless )

Engine location Hub

Engine power 250 W

Maximum torque 40 Nm

Maximum speed 25 km/h

Battery type Lithium-ion

Battery capacity 248 Wh

Battery location In the frame

Maximum range 70 km

Charger Mahle X35

Size	S	M	L	XL
Height (cm)	150-165	165-180	180-195	195-205
A - Seat tube (mm)	455	490	530	575
B - Horizontal pipe (mm)	507	530	547	571
C - Steerer tube (mm)	109	144	175	210
D - Rear triangle (mm)	435	435	435	435
E - Support height (mm)	280	280	280	280
F - Support lowering (mm)	76	76	76	76
G - Wheelbase (mm)	1008	1035	1065	1091
H - Head angle	71	71,5	71,5	72
I - Seat tube angle (°)	75	74,5	74	74
J - Crossover (mm)	775	809	842	881
K - Reach (mm)	370	390	410	430
L - Stack (mm)	550	585	615	650
M - Fork (mm)	410	410	410	410

Advantages

Aluminium frame

The use of an aluminium frame in this model of bicycle makes it extremely light and strong, so that moving the bicycle from place to place is not a problem. In addition, this material is characterised by its resistance to deformation.

Hydraulic disc brakes

The given model of the bike is equipped with hydraulic disc brakes. This type has a very low failure rate, ensuring that the brakes will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.

28" wheels

The use of 28-inch wheels on this model has made the bike faster to reach higher speeds and much easier to maintain. This wheel size allows the bike to negotiate obstacles comfortably and provides better stability at higher speeds.

Drive 1x10

The 1x10 derailleurs used on this e-bike model guarantee smooth gradation and allow effortless gear changes. The large gear range allows you to adapt the gear to the current road conditions.
