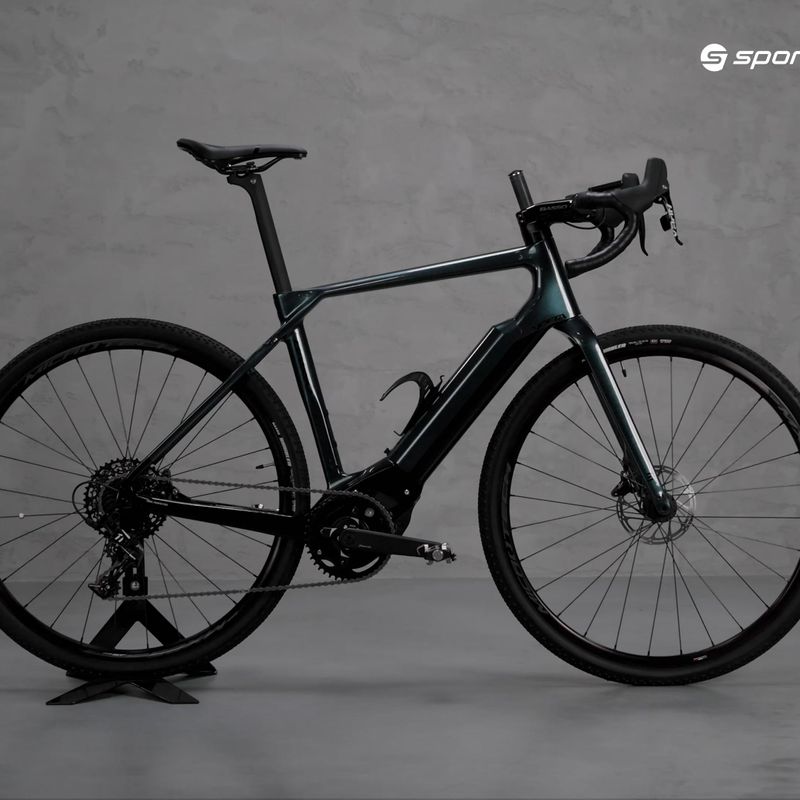

Basso Volta gravel grey electric bicycle VOGR2186

Parameters

Reservations The manufacturer reserves the right to change specifications, materials and equipment, so please refer to the current technical description on the product sheet below. The photos are for illustrative purposes only.

Model/product code Volta VOGR2186

Leading colour Grey

Brand Basso

Country of origin of the brand Italy

Gender Male, Woman

Season Year-round

Engine location Central

Engine power 250 W

Crank mechanism Sram Apex, 44T

Wheel size 28"

Frame Basso Volta, 100% 3K Torayca HMCF T700-MR60 carbon, internal cable routing, 3B system, tapered, thru axle

Derailleurs 1x11

Sport Bicycles

Cassette / Freewheel Sram Apex, 11-42T

Rear derailleur (model) SRAM Apex 1

Handles Sram Apex 1x

Depreciation No

Battery location In the frame

Fork material Carbon

Brakes (model) Sram Apex hydraulic, 160mm rotor

Purpose Gravel

Chain Sram Apex

Tubeless ready tyres Yes

Type of derailleur Mechanical

Handlebar support Basso semi-integrated stem

Bar Basso Palta carbon

Tyres Maxxis Rambler, 40mm

Frame material Carbon

Fork Basso Volta, full carbon, tapered, thru axle

Engine model Polini EP-3

Saddle San Marco GND

Steering wheel Microtech XL gravel alloy

Brake type Hydraulic discs

Number of gears 11

Wheels Microtech MX25 disc aluminium

Battery capacity 500 Wh

Stan złożenia roweru Bike adjusted and pre-assembled

Hubs Microtech alloy, 24 holes - front hub, Microtech alloy, 24 holes - rear hub

Maximum torque 70 Nm

Battery type Lithium-ion

Tubeless ready wheels Yes

Rudders Microtech

Basso Volta gravel grey electric bicycle VOGR2186 2

Basso Volta gravel grey electric bicycle VOGR2186

Sizes

Size	S	M	L	XL
Height (cm)	158-168	167-176	175-186	185+
Seatpost (A1)	430 mm	490 mm	540 mm	570 mm
TOP TUBE (B)	500 mm	530 mm	560 mm	590 mm
REACH (R)	348 mm	364 mm	382 mm	402 mm
STACK (S)	549 mm	580 mm	603 mm	617 mm
Seat angle (C)	74,5°	74°	73,5°	73°
Head tube angle (D)	69,5°	70°	71°	71°
Rear triangle length (E)	440 mm	440 mm	440 mm	440 mm
Front Centre (F)	574 mm	597 mm	612 mm	636 mm
Head tube (H)	130 mm	160 mm	180 mm	195 mm
Handlebar width (M)	420 mm	440 mm	440 mm	460 mm
Bridge length (N)	90 mm	100 mm	100 mm	120 mm

Product description

Advantages

Hydraulic disc brakes

The given model of the bike is equipped with hydraulic disc brakes. This type has a very low failure rate, ensuring that the brakes will be trouble-free, even during frequent use. In addition, they feature greater braking power and modulation.

28" wheels

The use of 28-inch wheels on this model has made the bike faster to reach higher speeds and much easier to maintain. This wheel size allows the bike to negotiate obstacles comfortably and provides better stability at higher speeds.

Tubeless ready tyres

Thanks to the use of Tubeless Ready (TLR) technology, the tyres are resistant to punctures and lower pressures can be applied. Furthermore, the system eliminates the problem of Snake Bite ", i.e. puncturing the inner tube by pinching it against the rim."

Drive 1x11

The 1x11 derailleurs used on this e-bike model guarantee smooth gradation and allow effortless gear changes. The large gear range allows you to adapt the gear to the current road conditions.
